Half-Bridge Gate Driver IC Non-Inverting 20-SOIC

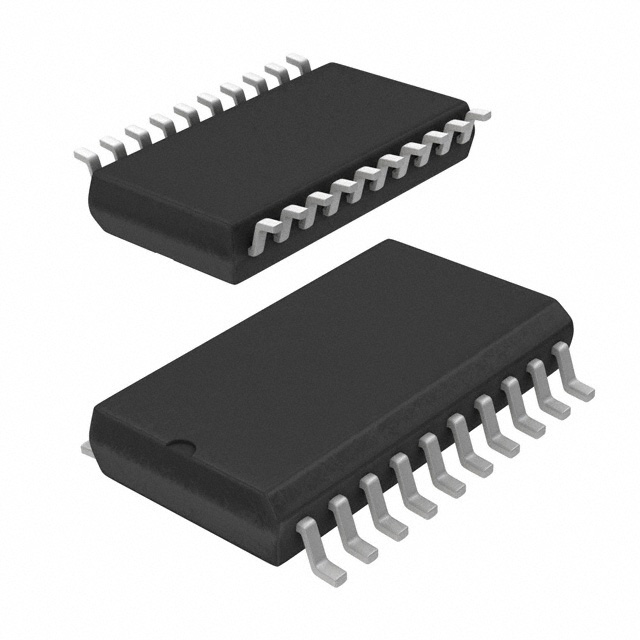

IRS21956SPBF
| Category | Integrated Circuits (ICs) - Power Management PMIC - Gate Drivers |
| Manufacturer | International Rectifier |
| Series | - |
| Packaging | Bulk |
| RoHS Status | Not applicable |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 3.5V |
| Current - Peak Output (Source, Sink) | 500mA, 500mA |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 25ns, 15ns |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Base Product Number | IRS21956 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |
| Part Number | IRS21956SPBF | IRS21956STRPBF | IRS21952SPBF | IRS21952STRPBF |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ||||
| Description | IC GATE DRVR HALF-BRIDGE 20SOIC | IC GATE DRVR HALF-BRIDGE 20SOIC | IC GATE DRVR HALF BRD/LOW 16SOIC | IC GATE DRVR HALF BRD/LOW 16SOIC |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Reel (TR) | Tube | Tape & Reel (TR) |
