IRS2330JTRPBF

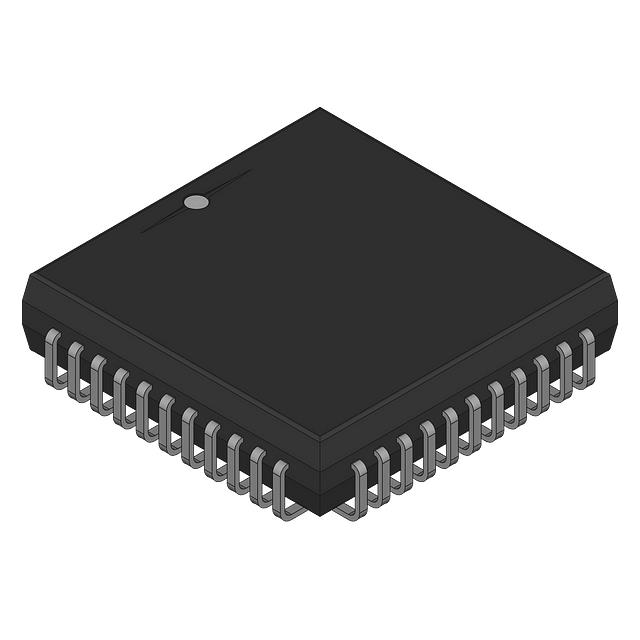

lmages are for reference only.IRS2330JTRPBF
3-PHASE-BRIDGE DRIVER
Datasheet44-LCC (J-Lead), 32 Leads
16,071 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Half-Bridge Gate Driver IC Inverting 44-PLCC, 32 Leads (16.58x16.58)
IRS2330JTRPBF
| Category | Integrated Circuits (ICs) - Power Management PMIC - Gate Drivers |
| Manufacturer | International Rectifier |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Driven Configuration | Half-Bridge |
| Channel Type | 3-Phase |
| Number of Drivers | 6 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink) | 250mA, 500mA |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 80ns, 35ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 44-LCC (J-Lead), 32 Leads |
| Supplier Device Package | 44-PLCC, 32 Leads (16.58x16.58) |
| Base Product Number | IRS2330 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | IRS2330JTRPBF | IRS2330DJPBF | IRS2330DJPBF | IRS2330DJTRPBF |
| Manufacturer | Infineon Technologies | Infineon Technologies | International Rectifier | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | |||
| Description | IC GATE DRVR HALF-BRIDGE 44PLCC | IC GATE DRVR HALF-BRIDGE 44PLCC | 3-PHASE-BRIDGE DRIVER | IC GATE DRVR HALF-BRIDGE 44PLCC |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tube | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
