IRSM515-025DA

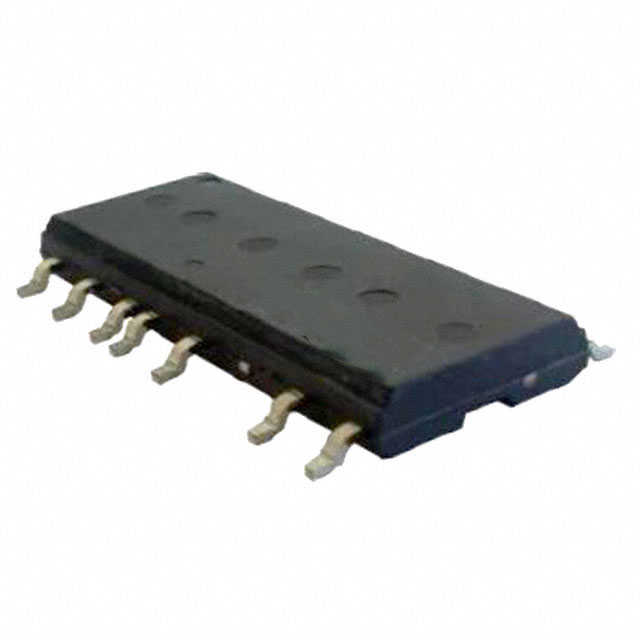

lmages are for reference only.IRSM515-025DA
IC HALF BRIDGE DRIVER 1.5A 23DIP
Datasheet23-DIP Module
89,377 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Half Bridge (3) Driver AC Motors UMOS 23-DIP
IRSM515-025DA
| Category | Integrated Circuits (ICs) - Power Management PMIC - Full Half-Bridge H Bridge Drivers |
| Manufacturer | International Rectifier |
| Series | µIPM™-DIP |
| Packaging | Bulk |
| RoHS Status | |
| Output Configuration | Half Bridge (3) |
| Applications | AC Motors |
| Interface | Logic |
| Load Type | Inductive |
| Technology | UMOS |
| Rds On (Typ) | 3Ohm |
| Current - Output / Channel | 1.5A |
| Current - Peak Output | 11A |
| Voltage - Supply | 13.5V ~ 16.5V |
| Voltage - Load | 400V (Max) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | UVLO |
| Mounting Type | Through Hole |
| Package / Case | 23-DIP Module |
| Supplier Device Package | 23-DIP |
| Base Product Number | IRSM515 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
|
| Part Number | IRSM515-025DA | IRSM515-025DA | IRSM515-025DA | IRSM515-025DA2 |
| Manufacturer | Infineon Technologies | International Rectifier | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC HALF BRIDGE DRIVER 1.5A 23DIP | IC HALF BRIDGE DRIVER 1.5A 23DIP | IC HALF BRIDGE DRIVER 1.5A 23DIP | IC HALF BRIDGE DRIVER 1.5A 23DIP |
| Series | µIPM™-DIP | µIPM™-DIP | µIPM™-DIP | µIPM™-DIP |
| Packaging | Tube | Bulk | Tube | Tube |
