Product CatalogPart Number
ITV9550L3060MR
Manufacturer
Hartland Controls/LittelfuseDescription
BATTERY PROTECTOR
Datasheet
DatasheetPackage
Nonstandard SMD
In Stock
19,968 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ITV9550L3060MR
ITV9550L3060MR
lmages are for reference only.Payment Methods
Delivery Services
60A 85 VDC Fuse Board Mount Surface Mount
Quick Inquiry
ITV9550L3060MR
Specifications
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Hartland Controls/Littelfuse |
| Series | ITV9550 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Fuse Type | Board Mount |
| Current Rating (Amps) | 60A |
| Voltage Rating - AC | - |
| Response Time | Fast Blow |
| Applications | Battery Protection |
| Features | - |
| Class | - |
| Approval Agency | - |
| Operating Temperature | -10°C ~ 65°C |
| Breaking Capacity @ Rated Voltage | 160A |
| Package / Case | Nonstandard SMD |
| Size / Dimension | 0.374" L x 0.197" W x 0.079" H (9.50mm x 5.00mm x 2.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 85 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | 0.002 Ohms |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | ITV9550L1230MR | ITV9550L1245MR | ITV9550L1260MR | ITV9550L1445MR |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Hartland Controls/Littelfuse | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE BATTERY PROTECTOR 12V 30A | FUSE BATTERY PROTECTOR 12V 45A | BATTERY PROTECTOR | FUSE BATTERY PROTECTOR 14V 45A |
| Series | POLYSWITCH®, ITV9550 | POLYSWITCH®, ITV9550 | ITV9550 | POLYSWITCH®, ITV9550 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
ITV9550L1230MR
Littelfuse Inc.
ITV9550L1245MR
Littelfuse Inc.

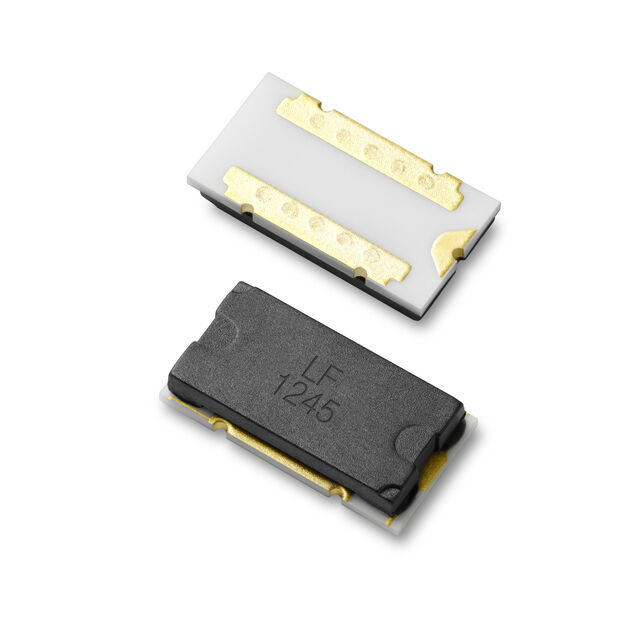

ITV9550L1260MR
Hartland Controls/Littelfuse
ITV9550L1445MR
Littelfuse Inc.
ITV9550L1460MR
Hartland Controls/Littelfuse
ITV9550L1830MR
Littelfuse Inc.

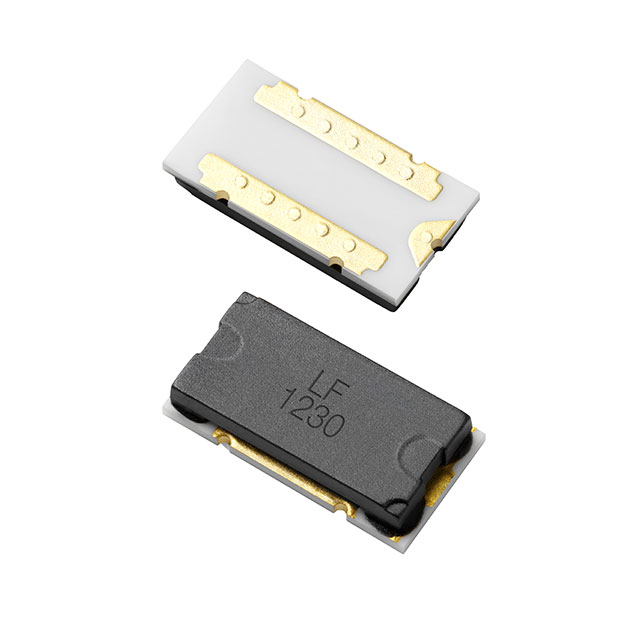

ITV9550L2030MR
Littelfuse Inc.
ITV9550L2045MR
Littelfuse Inc.
ITV9550L2060MR
Hartland Controls/Littelfuse
ITV9550L3030MR
Littelfuse Inc.
ITV9550L3045MR
Littelfuse Inc.
ITV9550L4030MR
Littelfuse Inc.
ITV9550L4045MR
Littelfuse Inc.

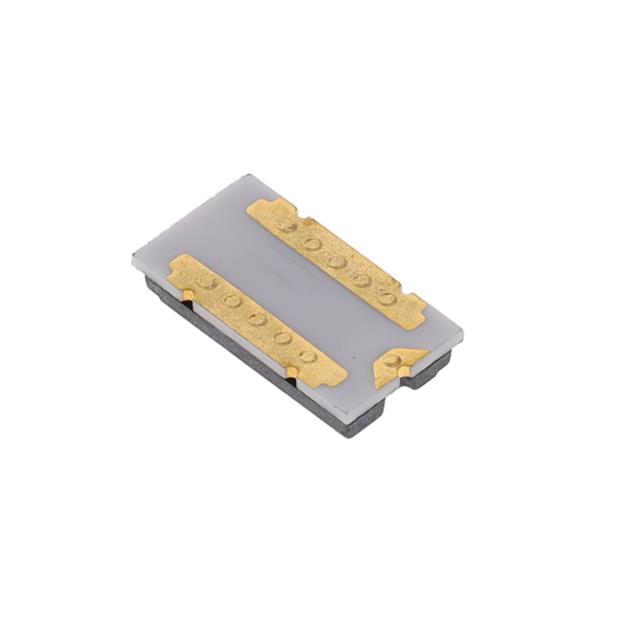

ITV9550L4060MR
