IGBT PT 1200 V 9 A 45 W Surface Mount TO-252AA

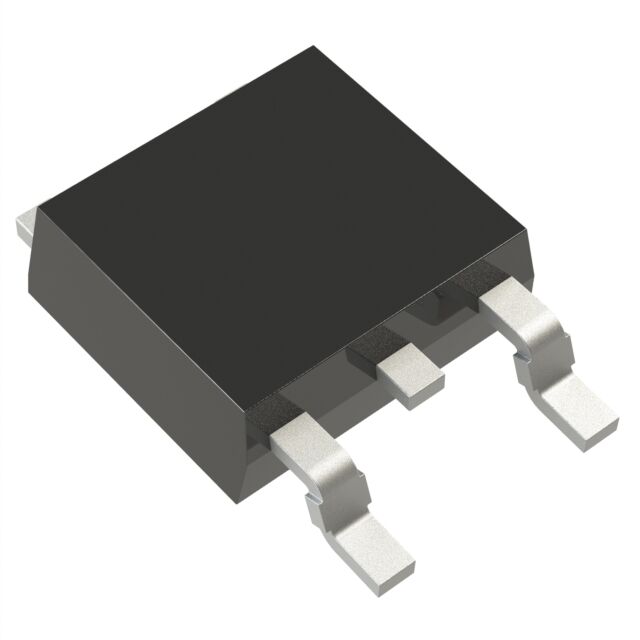

IXA4I1200UC-TUB
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | IXYS |
| Series | XPT™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | PT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 9 A |
| Current - Collector Pulsed (Icm) | - |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 3A |
| Power - Max | 45 W |
| Switching Energy | 400µJ (on), 300µJ (off) |
| Input Type | Standard |
| Gate Charge | 12 nC |
| Td (on/off) @ 25°C | 70ns/250ns |
| Test Condition | 600V, 3A, 330Ohm, 15V |
| Operating Temperature | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252AA |
| Reverse Recovery Time (trr) | - |
| Base Product Number | IXA4I1200 |
| Product Attribute |  |
 |
 |
 |

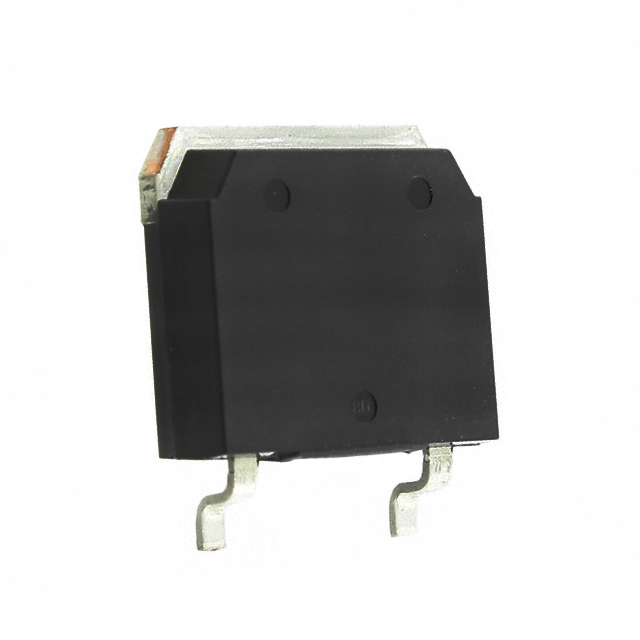

| Part Number | IXA4I1200UC-TRL | IXA4IF1200TC-TRL | IXA4IF1200TC-TUB | IXA4IF1200UC-TRL |
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IGBT 1200V 9A 45W TO252AA | IGBT 1200V 9A TO268AA | IGBT PT 1200V 9A TO268AA | IGBT 1200V 9A 45W TO252AA |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tube | Tape & Reel (TR) |
