Product CatalogPart Number
IXFN38N100Q2
Manufacturer
IXYSDescription
MOSFET N-CH 1000V 38A SOT-227
Datasheet
DatasheetPackage
SOT-227-4, miniBLOC
In Stock
62,794 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IXFN38N100Q2
IXFN38N100Q2
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 1000 V 38A (Tc) 890W (Tc) Chassis Mount SOT-227B
Quick Inquiry
IXFN38N100Q2
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | IXYS |
| Series | HiPerFET™, Q2 Class |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1000 V |
| Current - Continuous Drain (Id) @ 25°C | 38A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 250mOhm @ 19A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 8mA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 7200 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 890W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Supplier Device Package | SOT-227B |
| Package / Case | SOT-227-4, miniBLOC |
| Base Product Number | IXFN38 |
| Gate Charge (Qg) (Max) @ Vgs | 250 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |
| Part Number | IXFN38N100P | IXFN38N80Q2 | IXCP01N90E | IXFA102N15T |
| Manufacturer | Littelfuse Inc. | IXYS | IXYS | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET N-CH 1000V 38A SOT-227B | MOSFET N-CH 800V 38A SOT227B | MOSFET N-CH 900V 250MA TO220AB | MOSFET N-CH 150V 102A TO263 |
| Series | HiPerFET™, Polar | HiPerFET™, Q2 Class | - | HiPerFET™, Trench |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products
IXFN300N10P
Littelfuse Inc.
IXFN300N20X3
Littelfuse Inc.
IXFN30N110P
IXYS

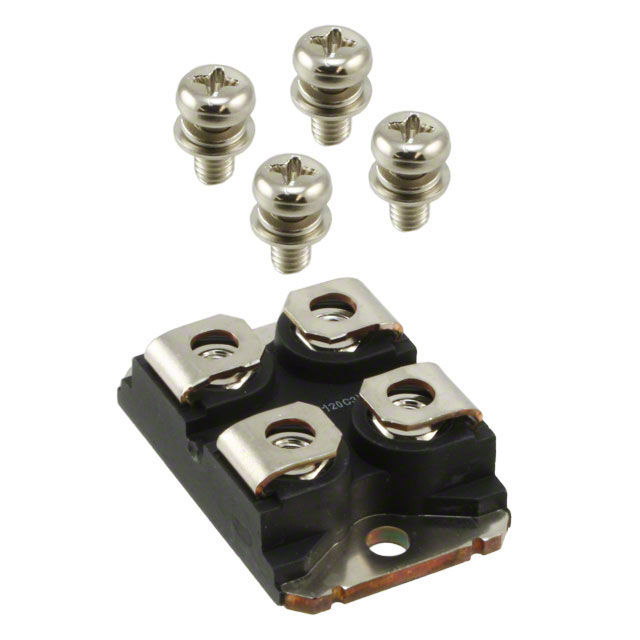

IXFN30N120P
