Product CatalogPart Number
IXFR55N50
Manufacturer
IXYSDescription
MOSFET N-CH 500V 48A ISOPLUS247
Datasheet
DatasheetPackage
TO-247-3
In Stock
32,384 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IXFR55N50
IXFR55N50

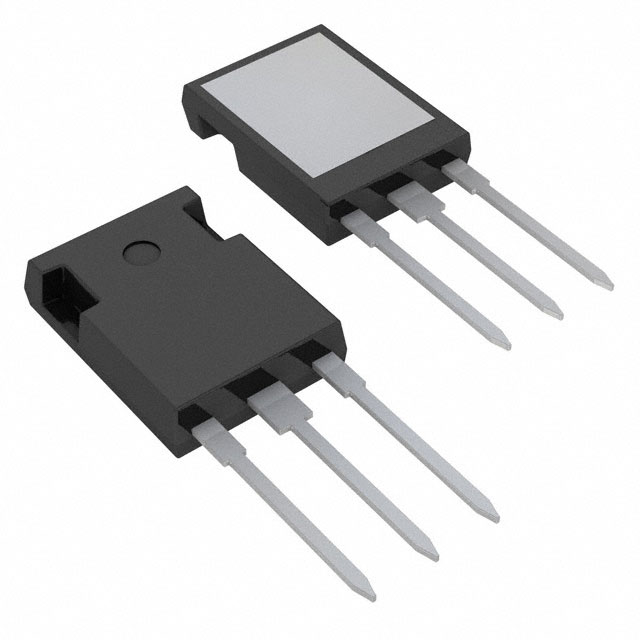

lmages are for reference only.Payment Methods
Delivery Services
N-Channel 500 V 48A (Tc) 400W (Tc) Through Hole ISOPLUS247™
Quick Inquiry
IXFR55N50
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | IXYS |
| Series | HiPerFET™ |
| Packaging | Tube |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 48A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 90mOhm @ 27.5A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 8mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 9400 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 400W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | ISOPLUS247™ |
| Package / Case | TO-247-3 |
| Base Product Number | IXFR55 |
| Gate Charge (Qg) (Max) @ Vgs | 330 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |
| Part Number | IXFA102N15T | IXFA10N60P | IXFA10N60P-TRL | IXFA10N80P |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 150V 102A TO263 | MOSFET N-CH 600V 10A TO263 | MOSFET N-CH 600V 10A D2-PAK | MOSFET N-CH 800V 10A TO263 |
| Series | HiPerFET™, Trench | HiPerFET™, Polar | HiPerFET™, Polar | HiPerFET™, Polar |
| Packaging | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
