IXFT94N30P3

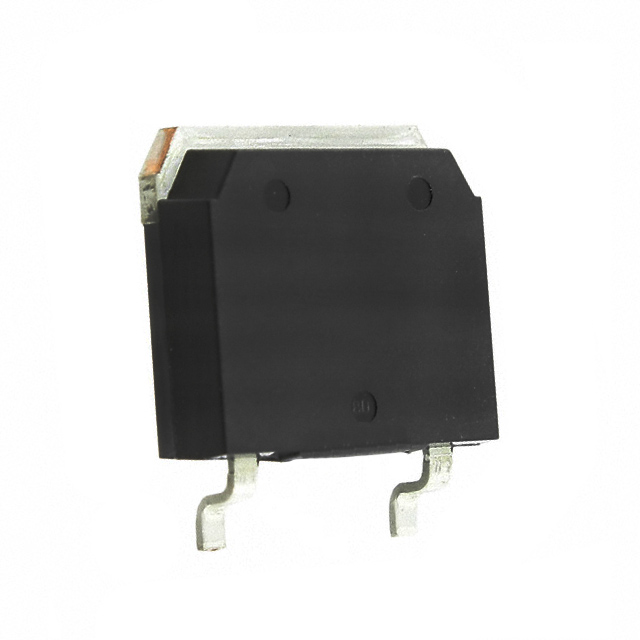

lmages are for reference only.IXFT94N30P3
MOSFET N-CH 300V 94A TO268
DatasheetTO-268-3, D3PAK (2 Leads + Tab), TO-268AA
53,200 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 300 V 94A (Tc) 1040W (Tc) Surface Mount TO-268AA
IXFT94N30P3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Littelfuse Inc. |
| Series | HiPerFET™, Polar3™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 300 V |
| Current - Continuous Drain (Id) @ 25°C | 94A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 36mOhm @ 47A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 4mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5510 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 1040W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-268AA |
| Package / Case | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA |
| Base Product Number | IXFT94 |
| Gate Charge (Qg) (Max) @ Vgs | 102 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | IXFT94N30T | IXFT96N20P | IQFH36N04NM6ATMA1 | IXTA220N075T7 |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Infineon Technologies | IXYS |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET N-CH 300V 94A TO268 | MOSFET N-CH 200V 96A TO268 | IQFH36N04NM6ATMA1 | MOSFET N-CH 75V 220A TO263-7 |
| Series | HiPerFET™, Trench | HiPerFET™, Polar | OptiMOS™ 6 | TrenchMV™ |
| Packaging | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
