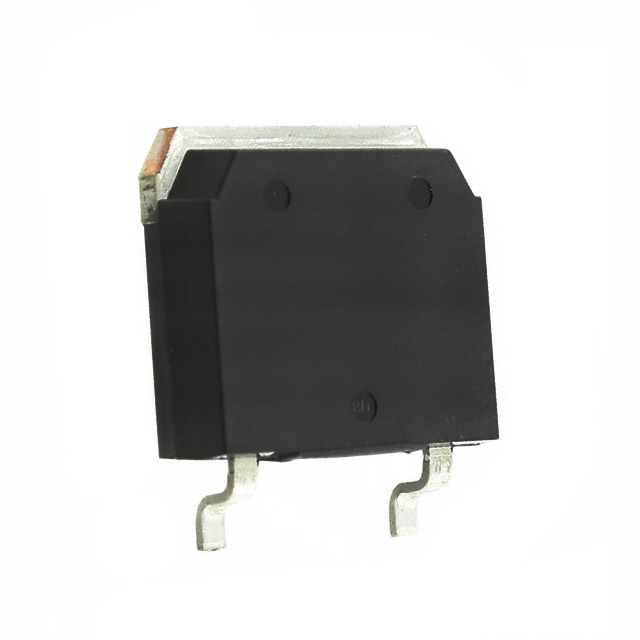

IGBT 1200 V 30 A 150 W Surface Mount TO-268AA
IXGT15N120BD1
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | IXYS |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 30 A |
| Current - Collector Pulsed (Icm) | 60 A |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 15A |
| Power - Max | 150 W |
| Switching Energy | 1.75mJ (off) |
| Input Type | Standard |
| Gate Charge | 69 nC |
| Td (on/off) @ 25°C | 25ns/150ns |
| Test Condition | 960V, 15A, 10Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA |
| Supplier Device Package | TO-268AA |
| Reverse Recovery Time (trr) | 40 ns |
| Base Product Number | IXGT15 |
| Product Attribute |  |
 |
 |
 |
| Part Number | IXGT15N120B | IXGT15N120C | IXGA12N100 | IXGA12N120A3 |
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | IGBT PT 1200V 30A TO268AA | IGBT 1200V 30A TO268AA | IGBT 1000V 24A 100W TO263AA | IGBT 1200V 22A 100W TO263 |
| Series | HiPerFAST™ | Lightspeed™ | - | GenX3™ |
| Packaging | Tube | Tube | Tube | Tube |
