IGBT PT 1200 V 5 A 25 W Surface Mount TO-252AA
IXGY2N120
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | IXYS |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | PT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 5 A |
| Current - Collector Pulsed (Icm) | 8 A |
| Vce(on) (Max) @ Vge, Ic | 4.5V @ 15V, 5A |
| Power - Max | 25 W |
| Switching Energy | 600µJ (off) |
| Input Type | Standard |
| Gate Charge | 9 nC |
| Td (on/off) @ 25°C | 15ns/300ns |
| Test Condition | 960V, 2A, 150Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252AA |
| Reverse Recovery Time (trr) | - |
| Base Product Number | IXGY2 |
| Product Attribute |  |
 |
 |
 |

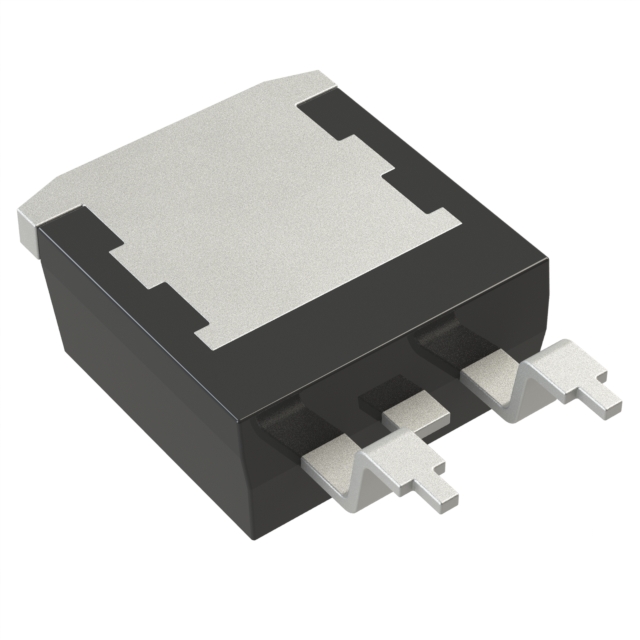

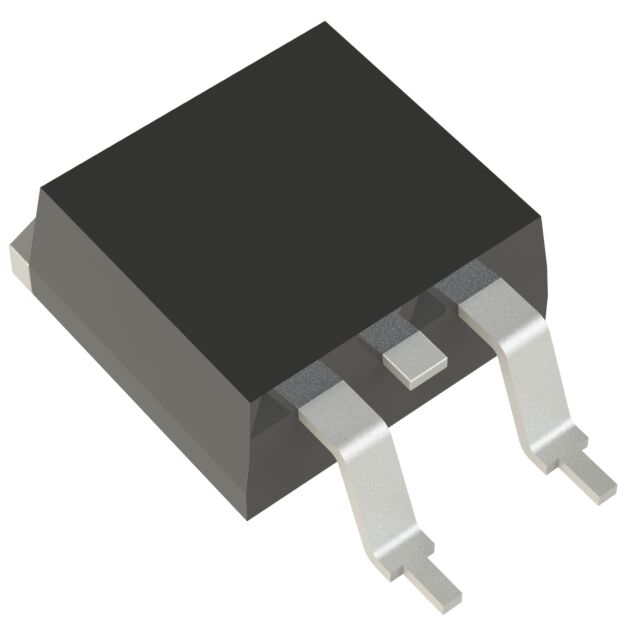

| Part Number | IXGA12N100 | IXGA12N120A3 | IXGA12N120A3-TRL | IXGA12N60B |
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | IGBT 1000V 24A 100W TO263AA | IGBT 1200V 22A 100W TO263 | IXGA12N120A3 TRL | IGBT 600V 24A 100W TO263AA |
| Series | - | GenX3™ | GenX3™ | HiPerFAST™ |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tube |
