Product CatalogPart Number
IXTN400N20X4
Manufacturer
IXYSDescription
Ultra Junction X4-Class Power
Datasheet
DatasheetPackage
SOT-227-4, miniBLOC
In Stock
51,423 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IXTN400N20X4
IXTN400N20X4
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 200 V 340A (Tc) 830W (Tc) Chassis Mount SOT-227B - miniBLOC
Quick Inquiry
IXTN400N20X4
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | IXYS |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 340A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 3mOhm @ 100A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 27700 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 830W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount |
| Supplier Device Package | SOT-227B - miniBLOC |
| Package / Case | SOT-227-4, miniBLOC |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 348 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

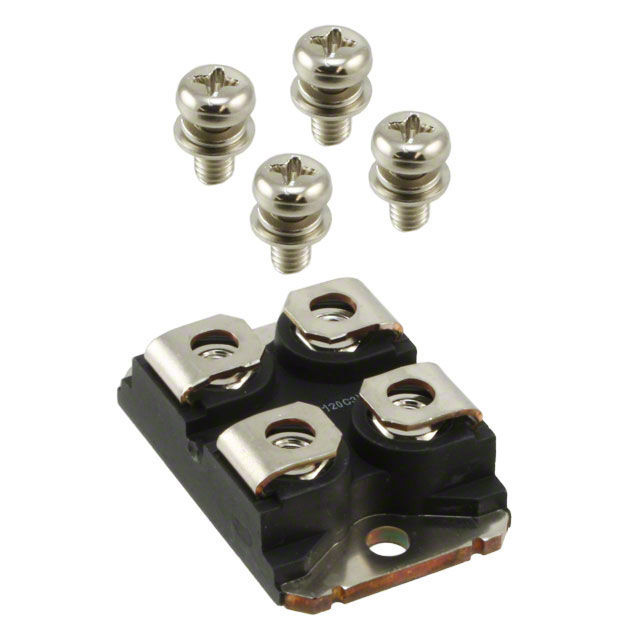

| Part Number | IXTN400N15X4 | IXTN40P50P | IXCP01N90E | IXFA102N15T |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | IXYS | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET N-CH 150V 400A SOT227B | MOSFET P-CH 500V 40A SOT227B | MOSFET N-CH 900V 250MA TO220AB | MOSFET N-CH 150V 102A TO263 |
| Series | Ultra X4 | PolarP™ | - | HiPerFET™, Trench |
| Packaging | Tube | Tube | Tube | Tube |
