Product CatalogPart Number
IXTP20N65X
Manufacturer
IXYSDescription
MOSFET N-CH 650V 20A TO220
Datasheet
DatasheetPackage
TO-220-3
In Stock
66,832 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IXTP20N65X
IXTP20N65X
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 650 V 20A (Tc) 320W (Tc) Through Hole TO-220-3
Quick Inquiry
IXTP20N65X
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | IXYS |
| Series | Ultra X |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 210mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 5.5V @ 250µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1390 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 320W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220-3 |
| Package / Case | TO-220-3 |
| Base Product Number | IXTP20 |
| Gate Charge (Qg) (Max) @ Vgs | 35 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

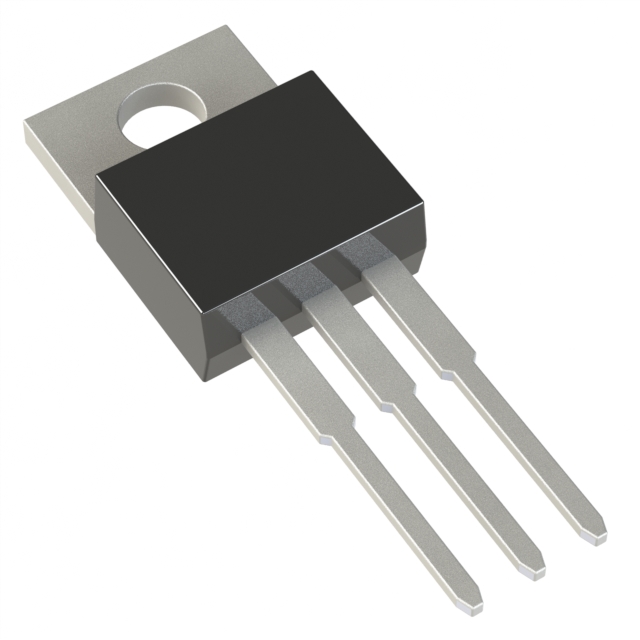

| Part Number | IXTP20N65X2 | IXTP20N65X2M | IXTP20N65XM | IXTP01N100D |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | IXYS | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 650V 20A TO220AB | MOSFET N-CH 650V 20A TO220 | MOSFET N-CH 650V 9A TO220 | MOSFET N-CH 1000V 400MA TO220AB |
| Series | Ultra X2 | Ultra X2 | Ultra X | Depletion |
| Packaging | Tube | Tube | Tube | Tube |
