JANTX1N6105US

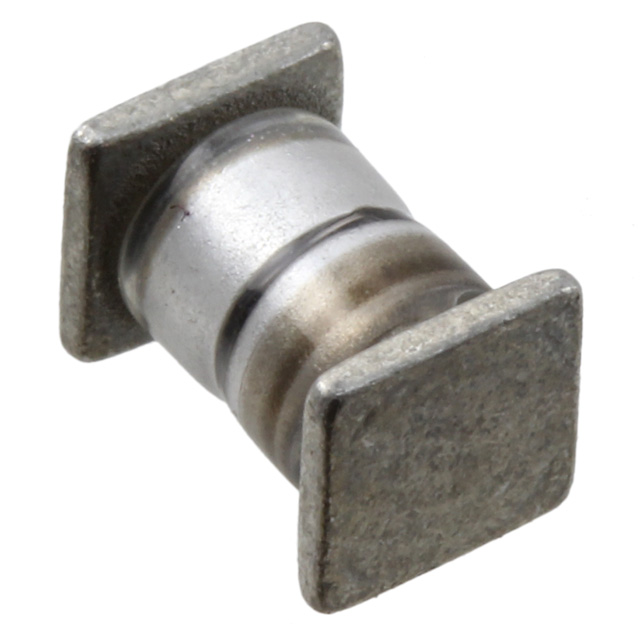

lmages are for reference only.JANTX1N6105US
TVS DIODE 6.9VWM 14.07VC SQ-MELF
DatasheetSQ-MELF, B
19,030 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
14.07V Clamp 35.44A Ipp Tvs Diode Surface Mount B, SQ-MELF
JANTX1N6105US
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Microsemi Corporation |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 6.9V |
| Voltage - Breakdown (Min) | 8.22V |
| Voltage - Clamping (Max) @ Ipp | 14.07V |
| Current - Peak Pulse (10/1000µs) | 35.44A |
| Power - Peak Pulse | 500W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SQ-MELF, B |
| Supplier Device Package | B, SQ-MELF |
| Base Product Number | JANTX1 |
| Unidirectional Channels | - |
| Grade | Military |
| Qualification | MIL-PRF-19500/516 |
| Product Attribute |  |
 |
|
 |
| Part Number | JANTX1N6105US/TR | JANTX1N6100 | JANTX1N6101 | JANTX1N6103 |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | |
| Description | BI-DIRECTIONAL TVS | TVS DIODE 14CFLATPACK | TVS DIODE 16CDIP | TVS DIODE 5.7VWM 11.76VC AXIAL |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Tape & Reel (TR) | Bulk | Bulk | Bulk |
