JANTXV1N6107US
lmages are for reference only.JANTXV1N6107US
TVS DIODE 8.4VWM 16.38VC SQ-MELF
DatasheetSQ-MELF, B
75,200 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
16.38V Clamp 30.4A Ipp Tvs Diode Surface Mount B, SQ-MELF
JANTXV1N6107US
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Microsemi Corporation |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 8.4V |
| Voltage - Breakdown (Min) | 9.93V |
| Voltage - Clamping (Max) @ Ipp | 16.38V |
| Current - Peak Pulse (10/1000µs) | 30.4A |
| Power - Peak Pulse | 500W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SQ-MELF, B |
| Supplier Device Package | B, SQ-MELF |
| Base Product Number | 1N6107 |
| Unidirectional Channels | - |
| Grade | Military |
| Qualification | MIL-PRF-19500/516 |
| Product Attribute |  |
|
 |
|

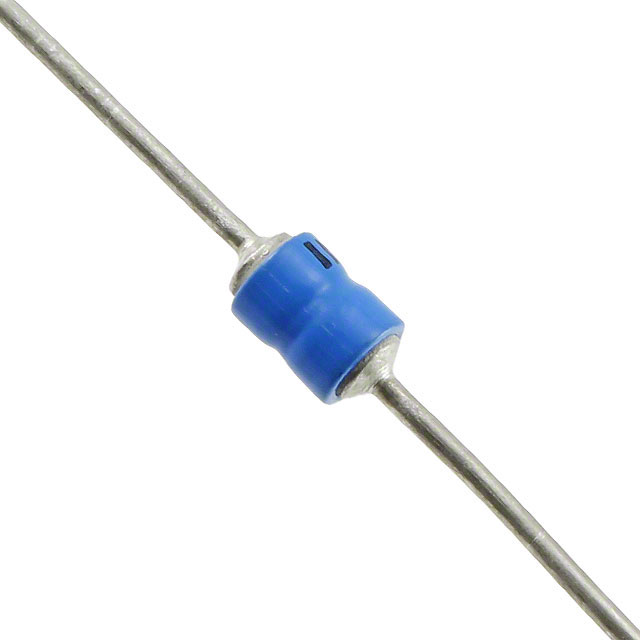

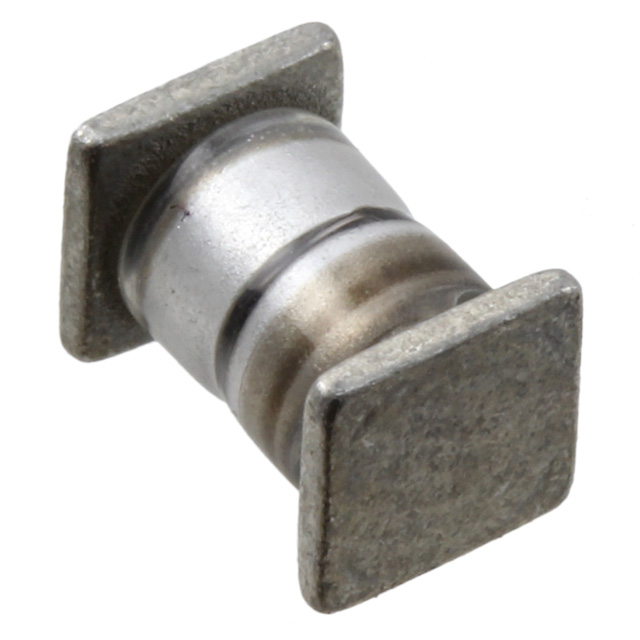

| Part Number | JANTXV1N6107US/TR | JANTXV1N6101 | JANTXV1N6103 | JANTXV1N6103A |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | |
| Description | BI-DIRECTIONAL TVS | TVS DIODE 16CDIP | TVS DIODE 5.7VWM 11.76VC AXIAL | TVS DIODE 5.7VWM 11.2VC AXIAL |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Tape & Reel (TR) | Bulk | Bulk | Bulk |
