JANTXV2N6796

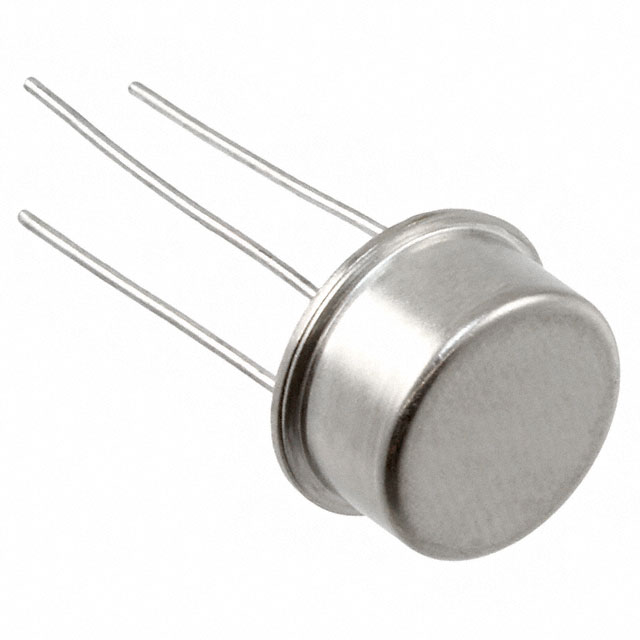

lmages are for reference only.JANTXV2N6796
MOSFET N-CH 100V 8A TO205AF
DatasheetTO-205AF Metal Can
27,391 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 100 V 8A (Tc) 800mW (Ta), 25W (Tc) Through Hole TO-205AF (TO-39)
JANTXV2N6796
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Microsemi Corporation |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 8A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 195mOhm @ 8A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| FET Feature | - |
| Power Dissipation (Max) | 800mW (Ta), 25W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-205AF (TO-39) |
| Package / Case | TO-205AF Metal Can |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 28.51 nC @ 10 V |
| Grade | Military |
| Qualification | MIL-PRF-19500/557 |
| Product Attribute |  |
 |
|
 |
| Part Number | JANTXV2N6790 | JANTXV2N6790U | JANTXV2N6796U | JANTXV2N6798 |
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | MOSFET N-CH 200V 3.5A TO205AF | MOSFET N-CH 200V 2.8A 18ULCC | MOSFET N-CH 100V 8A 18ULCC | MOSFET N-CH 200V 5.5A TO205AF |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
