Product CatalogPart Number
JAW050A61
Manufacturer
OmniOn Power™Description
DC DC CONVERTER 5V 50W
Datasheet
DatasheetPackage
9-DIP Module
In Stock
79,644 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
JAW050A61
JAW050A61

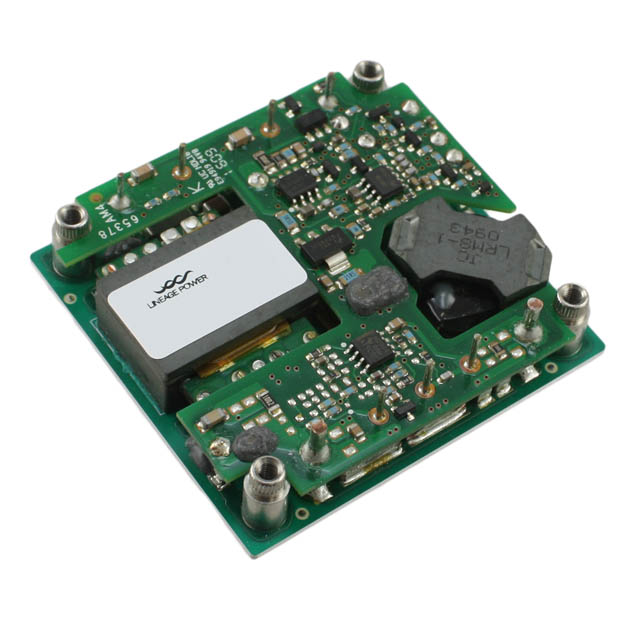

lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 5V 10A 36V - 75V Input
Quick Inquiry
JAW050A61
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | OmniOn Power™ |
| Series | JAW (50W) |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 50 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 84% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 9-DIP Module |
| Size / Dimension | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | JAW050A | JAW050A1 | JAW075A1 | 4AA12-P4-25PPM-M-E |
| Manufacturer | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ | ULTRAVOLT / Advanced Energy |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 5V 50W | DC DC CONVERTER 5V 50W | DC DC CONVERTER 5V 75W | DC/DC CONVERTER |
| Series | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ | ULTRAVOLT / Advanced Energy |
| Packaging | Bulk | Bulk | Bulk | Bulk |
