JJCHLUJ100NOPMRTR
lmages are for reference only.JJCHLUJ100NOPMRTR
SWITCH DETECT SPST-NO 0.001A 5V
Datasheet-
33,558 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Switch SPST-NO Surface Mount
JJCHLUJ100NOPMRTR
| Category | Switches - Limit Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | JJC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | JJCHL |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Current Rating (Amps) | 1mA (DC) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 5 V |
| Actuator Type | Angled Toggle (Detector) |
| Mounting Type | Surface Mount |
| Termination Style | J Lead |
| Ingress Protection | - |
| Electrical Life | 50,000 Cycles |
| Mechanical Life | 50,000 Cycles |
| Features | Board Guide |
| Operating Force | 35gf |
| Release Force | - |
| Operating Position | 0.120" (3.05mm) |
| Pretravel | 0.012" (0.3mm) |
| Differential Travel | - |
| Overtravel | - |
| Operating Temperature | -10°C ~ 60°C |
| Product Attribute |  |
 |
 |
 |

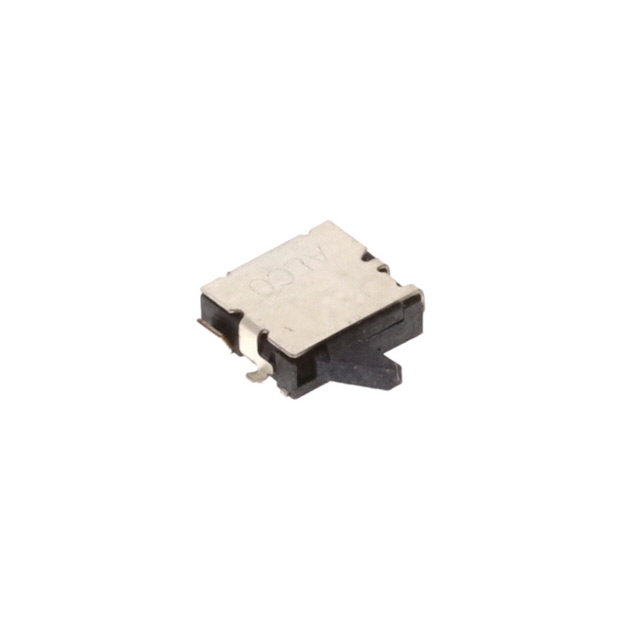

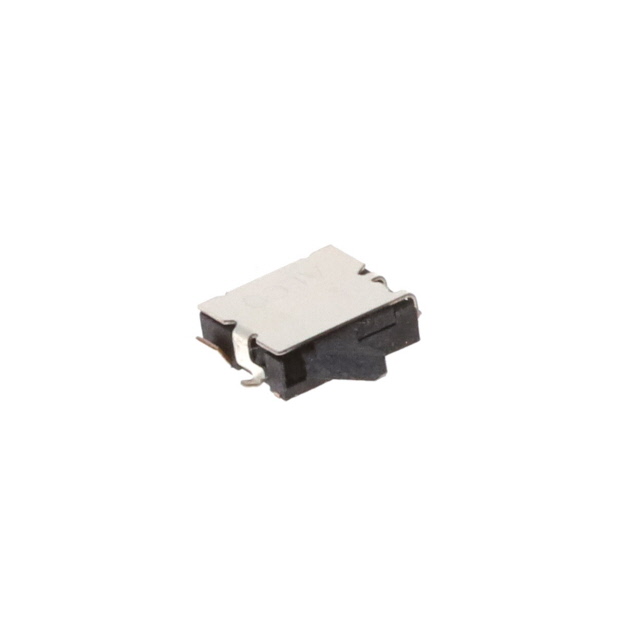

| Part Number | JJCHLUJ100NCNMRTR | JJCHLUJ100NCPMRTR | JJCHLUJ100NONMRTR | JJAV0UJ253NONMRTR |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

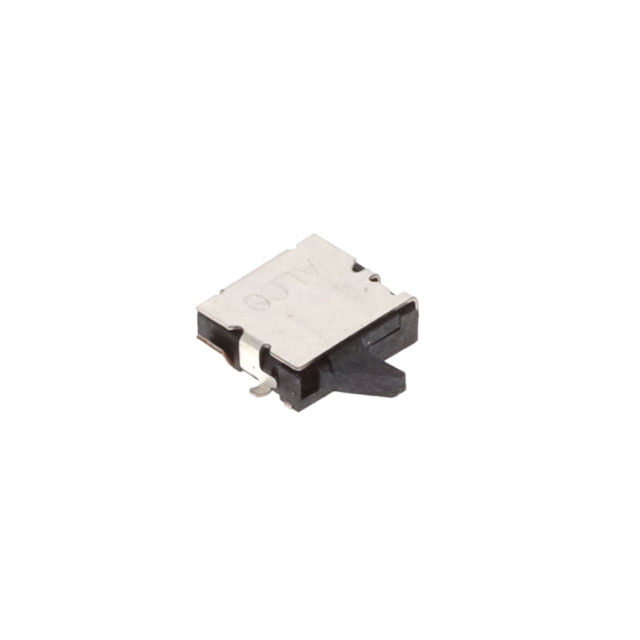

| Description | SWITCH DETECT SPST-NC 0.001A 5V | SWITCH DETECT SPST-NC 0.001A 5V | SWITCH DETECT SPST-NO 0.001A 5V | SWITCH DETECT SPST-NO 0.001A 5V |
| Series | JJC | JJC | JJC | JJA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
