JJFV0UG380NONMRTR
lmages are for reference only.JJFV0UG380NONMRTR
SWITCH DETECT SPST-NO 0.001A 5V
Datasheet-
22,913 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Switch SPST-NO Surface Mount
JJFV0UG380NONMRTR
| Category | Switches - Limit Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | JJF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | JJFV0 |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Current Rating (Amps) | 1mA (DC) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 5 V |
| Actuator Type | Angled Toggle (Detector) |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Ingress Protection | - |
| Electrical Life | 100,000 Cycles |
| Mechanical Life | 100,000 Cycles |
| Features | - |
| Operating Force | 40gf |
| Release Force | - |
| Operating Position | 0.138" (3.5mm) |
| Pretravel | 0.012" (0.3mm) |
| Differential Travel | - |
| Overtravel | - |
| Operating Temperature | -10°C ~ 60°C |
| Product Attribute |  |
 |
 |
 |

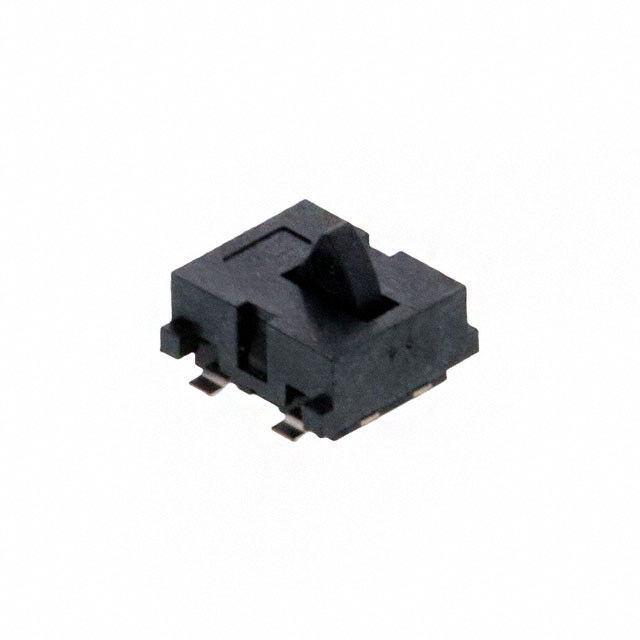

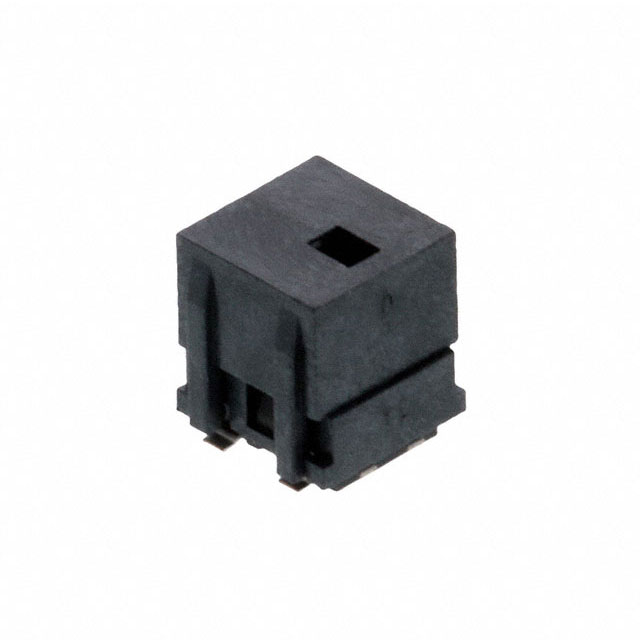

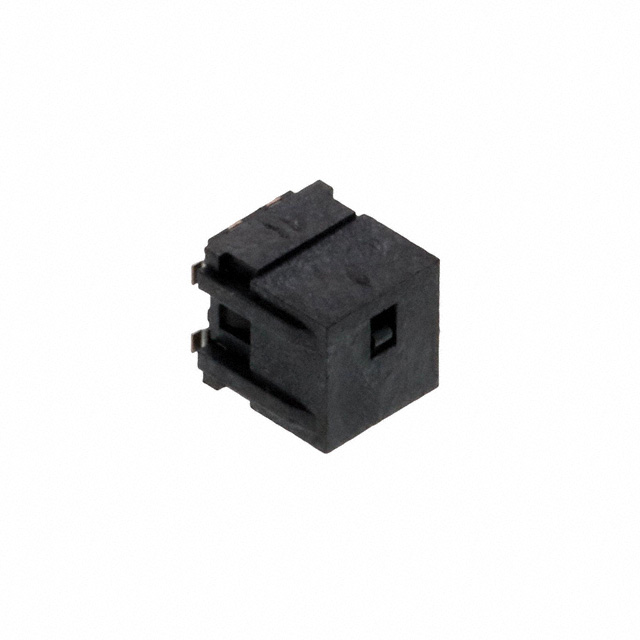

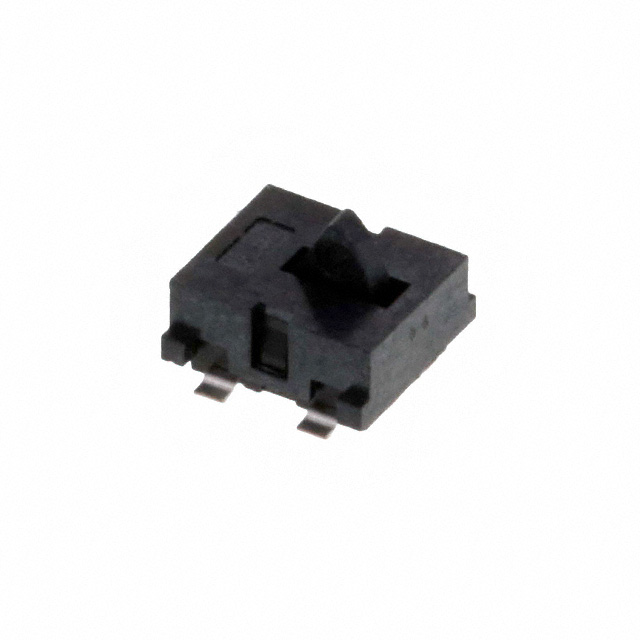

| Part Number | JJFV0UG380NONPRTR | JJFV0UG380NOPMRTR | JJFV0UG380NOPPRTR | JJFV0UG530NONMRTR |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH DETECT SPST-NO 0.001A 5V | SWITCH DETECT SPST-NO 0.001A 5V | SWITCH DETECT SPST-NO 0.001A 5V | SWITCH DETECT SPST-NO 0.001A 5V |
| Series | JJF | JJF | JJF | JJF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
