JJJHLUG200NOPMRTR

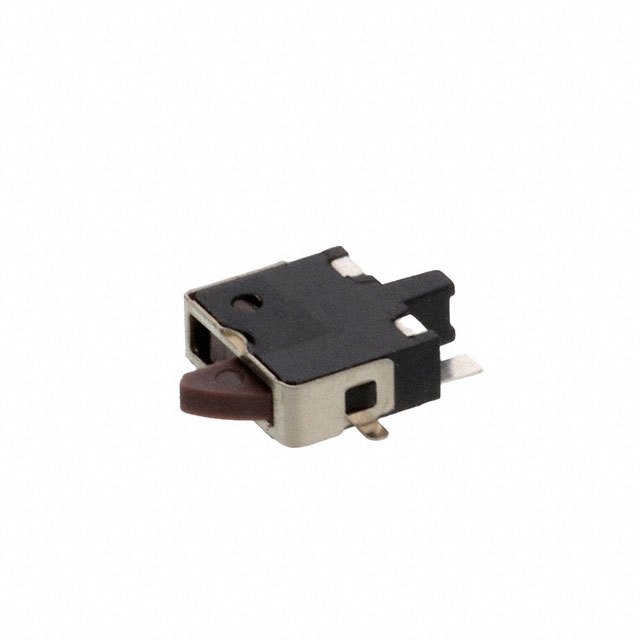

lmages are for reference only.JJJHLUG200NOPMRTR
SWITCH DETECT SPST-NO 0.05A 20V
Datasheet-
29,514 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Switch SPST-NO Surface Mount
JJJHLUG200NOPMRTR
| Category | Switches - Limit Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | JJJ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | JJJHLUG200 |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Current Rating (Amps) | 50mA (DC) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 20 V |
| Actuator Type | Angled Toggle (Detector) |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Ingress Protection | - |
| Electrical Life | 100,000 Cycles |
| Mechanical Life | 100,000 Cycles |
| Features | Board Guide |
| Operating Force | 50gf |
| Release Force | - |
| Operating Position | 0.117" (2.96mm) |
| Pretravel | 0.010" (0.25mm) |
| Differential Travel | - |
| Overtravel | - |
| Operating Temperature | -10°C ~ 60°C |
| Product Attribute |  |
 |
 |
 |

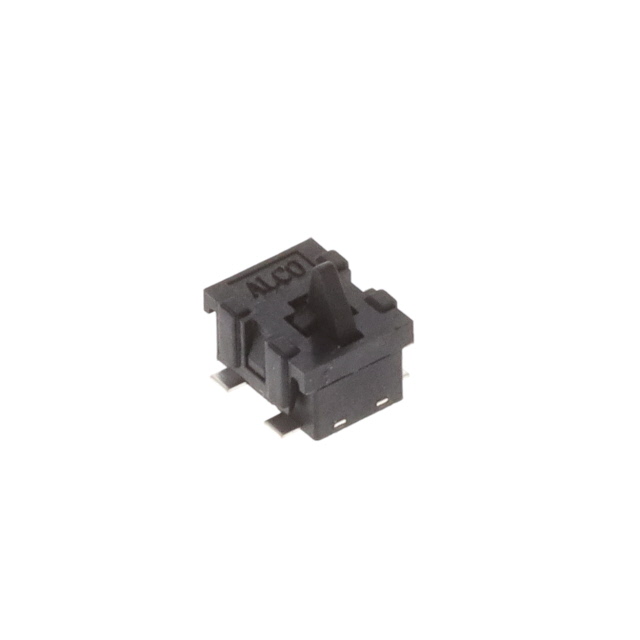

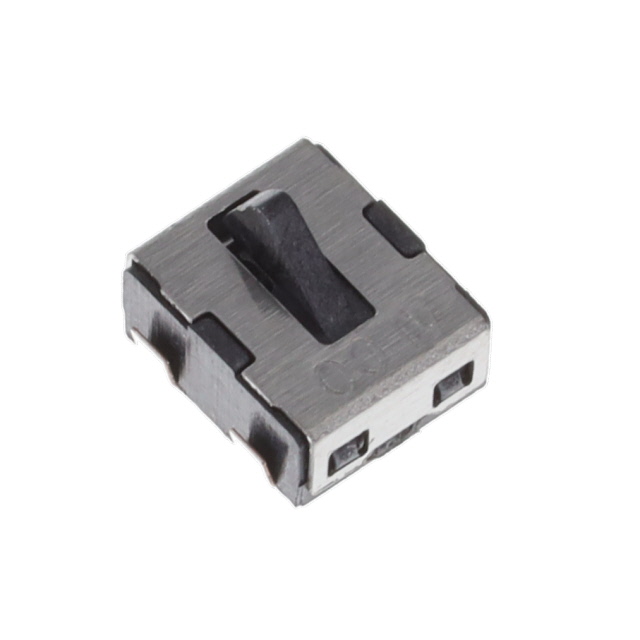

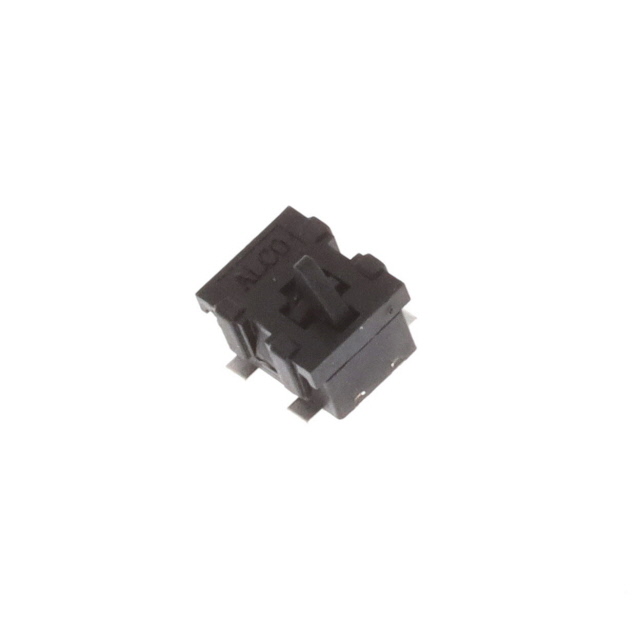

| Part Number | JJAV0UJ253NONMRTR | JJAV0UJ253NOPMRTR | JJBV0UG335NONPRTR | JJBV0UG335NOPPRTR |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH DETECT SPST-NO 0.001A 5V | SWITCH DETECT SPST-NO 0.001A 5V | SWITCH DETECTOR SPST-NO 0.1A 5V | SWITCH DETECTOR SPST-NO 0.1A 5V |
| Series | JJA | JJA | JJB | JJB |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
