JMAWDD-12XP

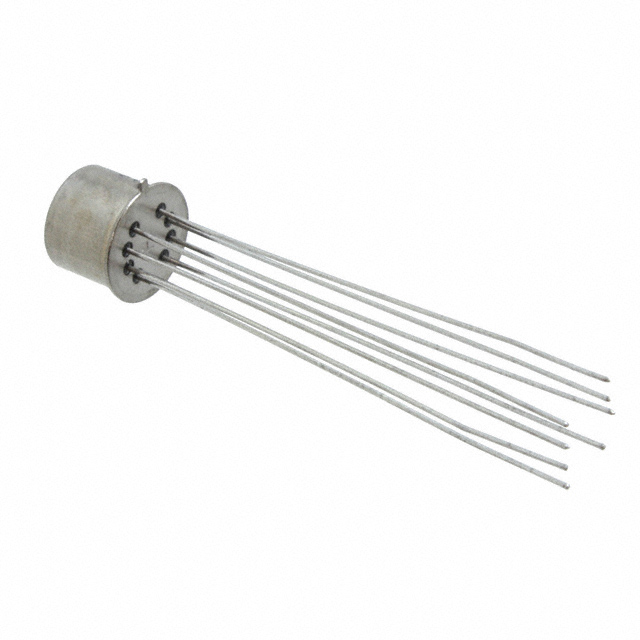

lmages are for reference only.JMAWDD-12XP
RELAY GEN PURPOSE DPDT 1A 12V
Datasheet-
20,375 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay DPDT (2 Form C) Through Hole
JMAWDD-12XP
| Category | Relays - Signal Relays-Up to 2 Amps - |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
| Series | MADD, CII |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 1 A |
| Switching Voltage | 115VAC, 28VDC - Max |
| Load - Max Switching | 115VA, 28W |
| Coil Type | Non Latching |
| Features | Diode |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Hermetically |
| Coil Insulation | - |
| Must Operate Voltage | 8 VDC |
| Must Release Voltage | 1.1 VDC |
| Operate Time | 2 ms |
| Release Time | 4 ms |
| Operating Temperature | -65°C ~ 125°C |
| Contact Material | Silver Palladium (AgPd), Gold (Au) |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | Military |
| Qualification | MIL-R-39016/20 |
| Base Product Number | JMAWD |
| Coil Current | 32.8 mA |
| Coil Resistance | 390 Ohms |
| Product Attribute | |
|
|
|
| Part Number | JMAWD-12XL | JMAWD-12XP | JMAWD-18XL | JMAWD-26XL |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE DPDT 1A 12V | RELAY GEN PURPOSE DPDT 1A 12V | RELAY GEN PURPOSE DPDT 1A 18V | RELAY GEN PURPOSE DPDT 1A 26.5V |
| Series | MAD, CII | MAD, CII | MAD, CII | MAD, CII |
| Packaging | Bulk | Bulk | Bulk | Bulk |
