JMGACDD-9P
lmages are for reference only.JMGACDD-9P
RELAY GENERAL PURPOSE DPDT 1A 9V
Datasheet-
78,967 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay DPDT (2 Form C) Through Hole
JMGACDD-9P
| Category | Relays - Signal Relays-Up to 2 Amps - |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
| Series | MGADD, CII |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 9VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 1 A |
| Switching Voltage | 115VAC, 28VDC - Max |
| Load - Max Switching | 115VA, 28W |
| Coil Type | Non Latching |
| Features | Diode |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Hermetically |
| Coil Insulation | - |
| Must Operate Voltage | 6.3 VDC |
| Must Release Voltage | 0.9 VDC |
| Operate Time | 2 ms |
| Release Time | 4 ms |
| Operating Temperature | -65°C ~ 125°C |
| Contact Material | Silver Palladium (AgPd), Gold (Au) |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | Military |
| Qualification | MIL-R-39016/19 |
| Base Product Number | JMGAC |
| Coil Current | 42.9 mA |
| Coil Resistance | 220 Ohms |
| Product Attribute | |
 |
 |
|

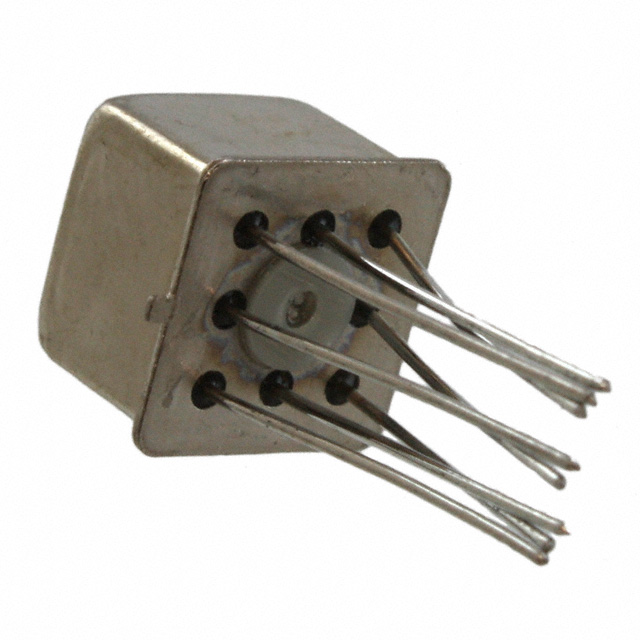

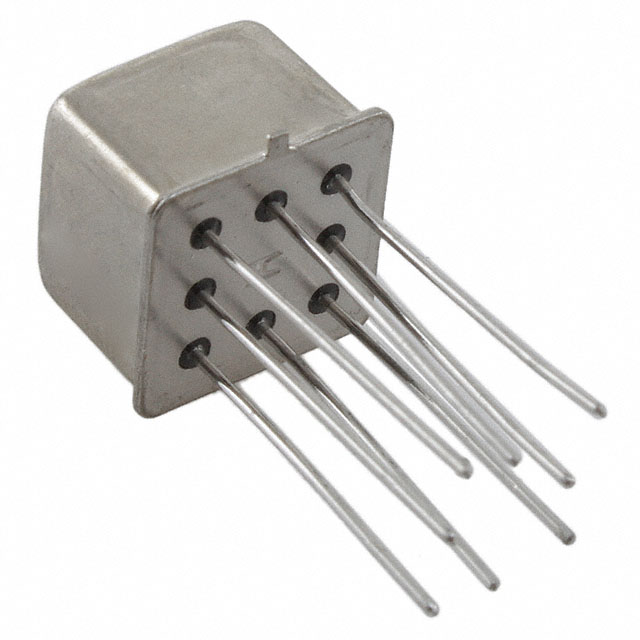

| Part Number | JMGACDD-12P | JMGACDD-26L | JMGACDD-26LW | JMGACDD-26M |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | RELAY GEN PURPOSE DPDT 1A 12V | RELAY GEN PURPOSE DPDT 1A 26.5V | RELAY GEN PURPOSE DPDT 1A 26.5V | RELAY |
| Series | MGADD, CII | MGA, CII | MGA, CII | * |
| Packaging | Bulk | Bulk | Bulk | Tray |
