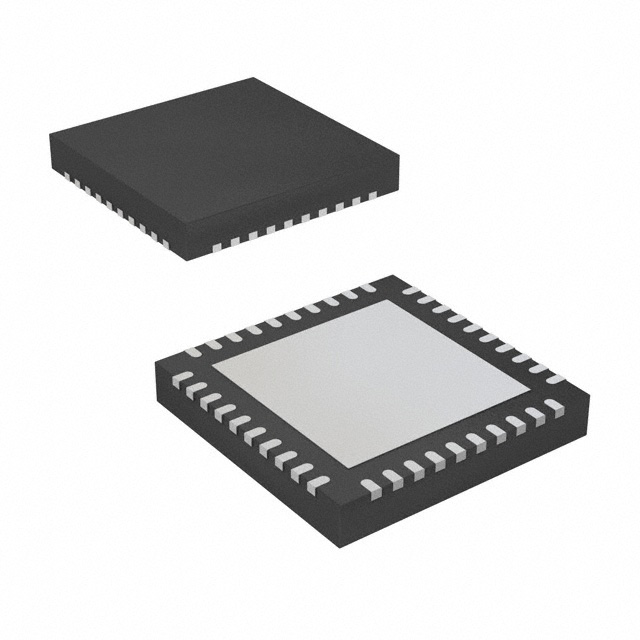

IC RF TxRx + MCU 802.15.4 ZigbeePRO® 2.4GHz 40-VFQFN Exposed Pad
JN5164/001,518
| Category | RF and Wireless - RF Transceiver ICs - |
| Manufacturer | NXP USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | TxRx + MCU |
| RF Family/Standard | 802.15.4 |
| Protocol | ZigbeePRO® |
| Modulation | O-QPSK |
| Frequency | 2.4GHz |
| Data Rate (Max) | 1Mbps |
| Power - Output | 2.5dBm |
| Sensitivity | -96dBm |
| Memory Size | 160kB Flash, 4kB EEPROM, 32kB RAM |
| Serial Interfaces | I2C, JTAG, SPI, UART |
| GPIO | 20 |
| Voltage - Supply | 2V ~ 3.6V |
| Current - Receiving | 17mA |
| Current - Transmitting | 15.3mA |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-HVQFN (6x6) |
| Base Product Number | JN5164 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | JN5164/001,515 | JN5139/001,518 | JN5139/001,531 | JN5139/Z01,515 |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC RF TXRX+MCU 802.15.4 40HVQFN | IC RF TXRX+MCU 802.15.4 56VFQFN | IC RF TXRX+MCU 802.15.4 56VFQFN | IC RF TXRX+MCU 802.15.4 56VFQFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
