Product CatalogPart Number
K7812M-1000R3
Manufacturer
Mornsun America, LLCDescription
DC DC CONVERTER +/-12V 16W
Datasheet
DatasheetPackage
3-SIP Module
In Stock
89,059 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
K7812M-1000R3
K7812M-1000R3
lmages are for reference only.Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 12V or -12V 1A or 300mA 16V, 8V - 36V, 20V Input
Quick Inquiry
K7812M-1000R3
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 16V, 8V |
| Voltage - Input (Max) | 36V, 20V |
| Voltage - Output 1 | 12V or -12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1A or 300mA |
| Power (Watts) | 16 W |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 95% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 3-SIP Module |
| Size / Dimension | 0.46" L x 0.31" W x 0.41" H (11.6mm x 8.0mm x 10.4mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |

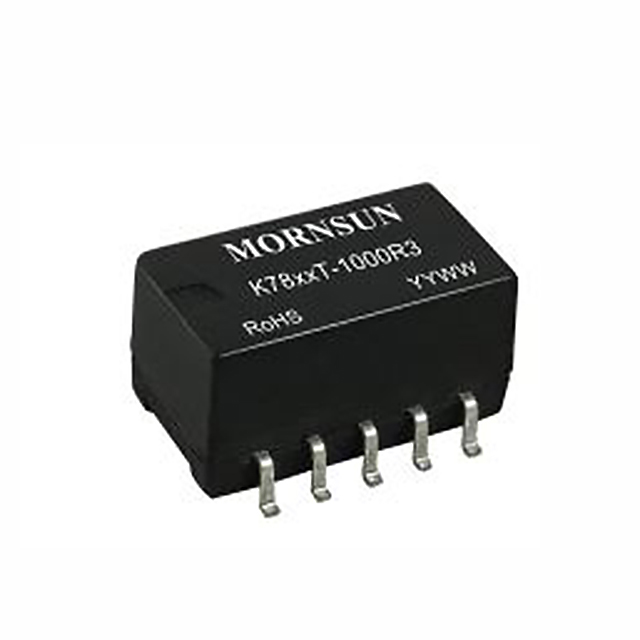

| Part Number | K7801T-1000R3 | K7801T-1000R3-TR | K7801T-1000R3-TR | K7801T-500R3 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC DC CONVERTER 1.5V 1.5W | DC DC CONVERTER 1.5V 1.5W | DC DC CONVERTER 1.5V 1.5W | DC DC CONVERTER 1.5V 750MW |
| Series | ||||
| Packaging | K7801T-1000R3 | K7801T-1000R3 | K7801T-1000R3 | K7801T-500R3 |
