KBPC3504T
lmages are for reference only.KBPC3504T
BRIDGE RECT 1PHASE 400V 35A KBPC
Datasheet4-Square, KBPC-T
71,500 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 400 V QC Terminal KBPC
KBPC3504T
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | GeneSiC Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 400 V |
| Current - Average Rectified (Io) | 35 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 17.5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 400 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | QC Terminal |
| Package / Case | 4-Square, KBPC-T |
| Supplier Device Package | KBPC |
| Base Product Number | KBPC3504 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

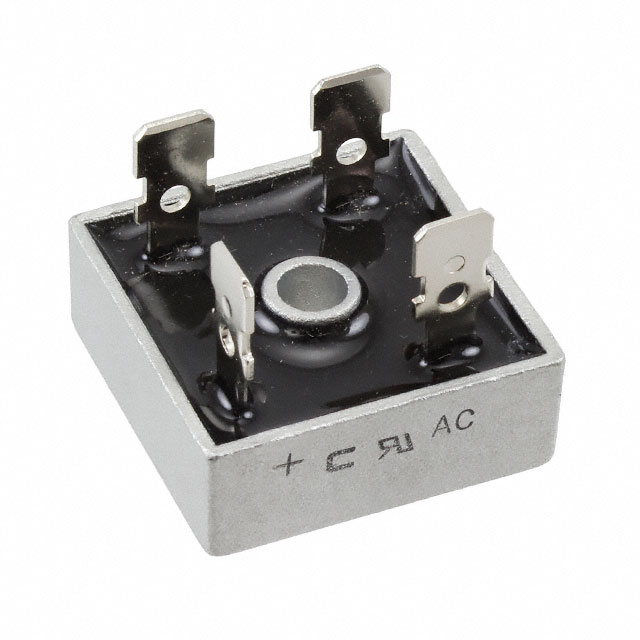

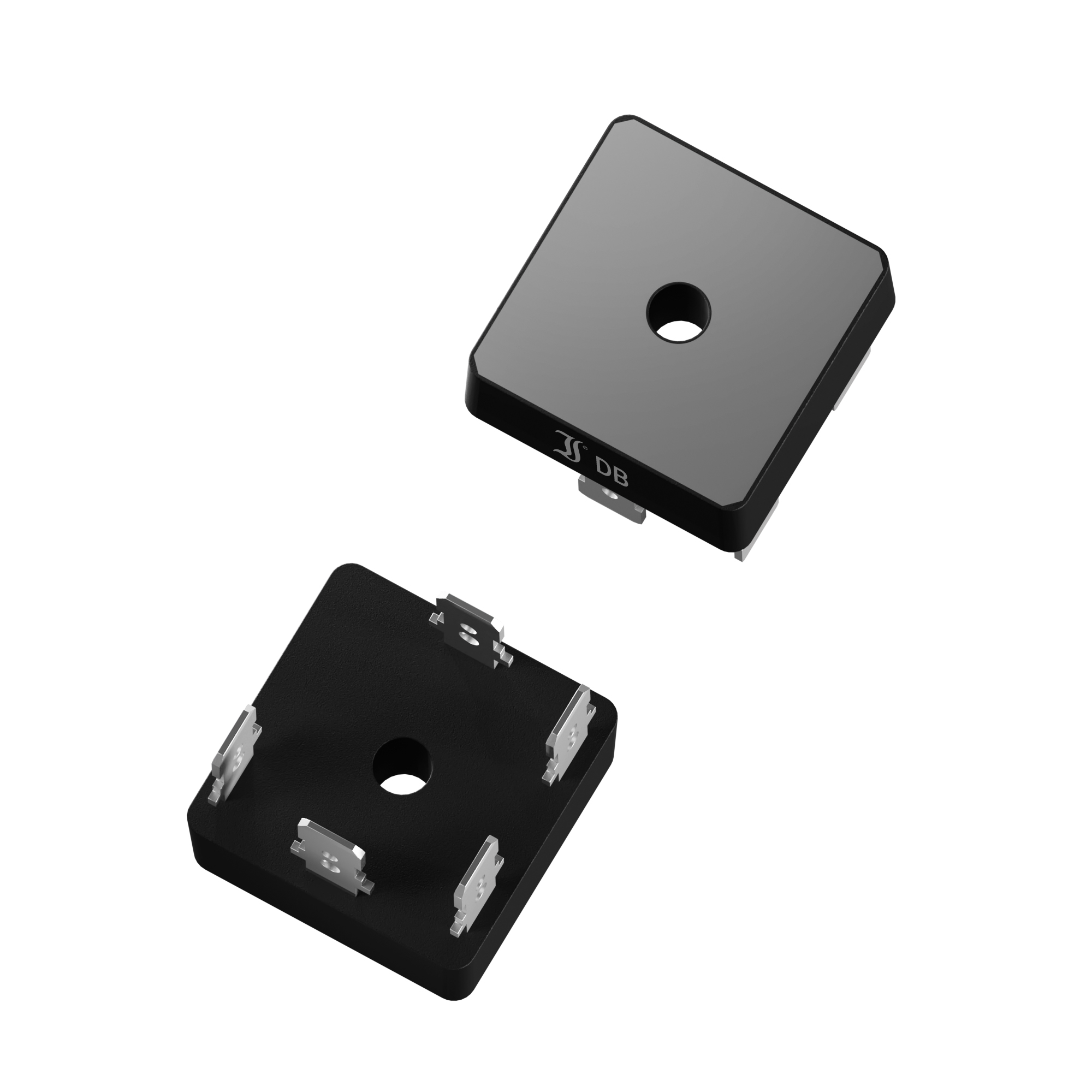

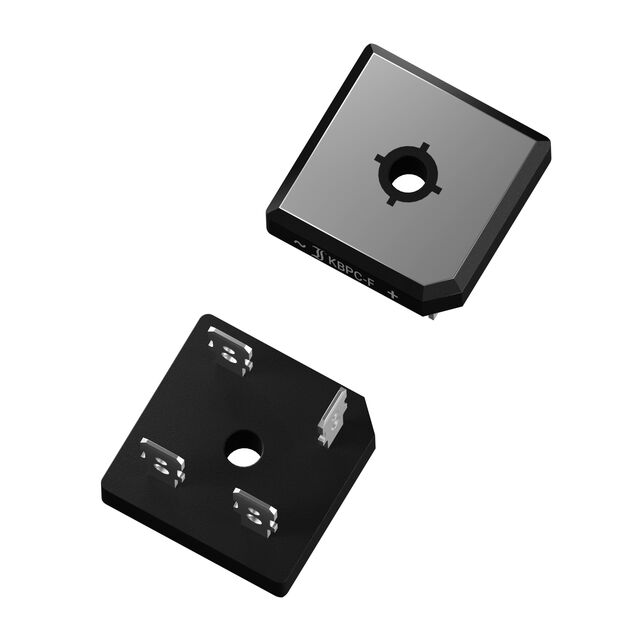

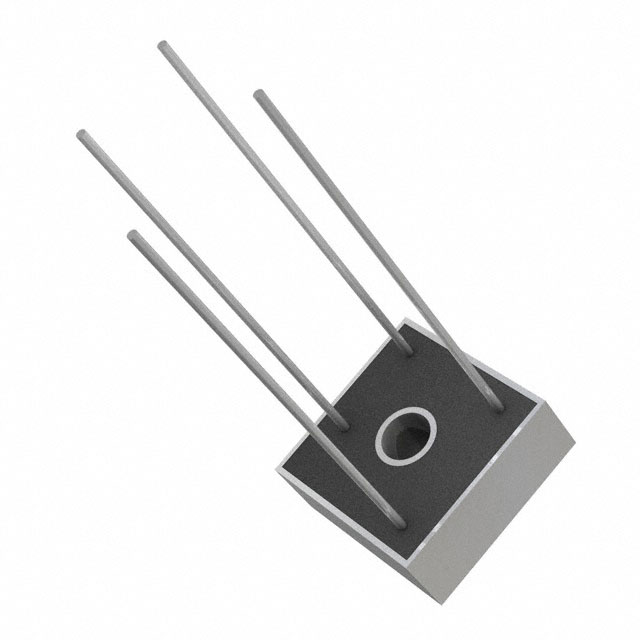

| Part Number | KBPC3504-G | KBPC3504FP | KBPC3504IP | KBPC3504W |
| Manufacturer | Comchip Technology | Diotec Semiconductor | Diotec Semiconductor | GeneSiC Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | |
| Description | BRIDGE RECT 1PHASE 400V 35A KBPC | BRIDGE 1-PH KBPC 400V 35A | BRIDGE, 1-PH, DB, 400V, 35A | BRIDGE RECT 1P 400V 35A KBPC-W |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
