KBU2508G

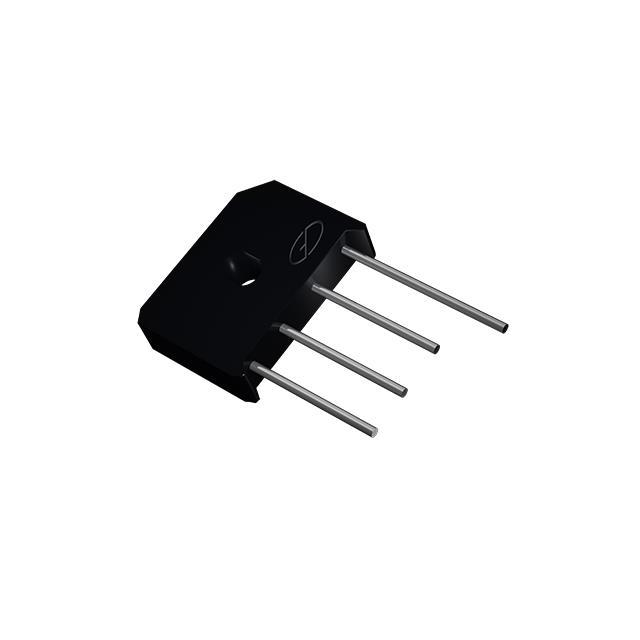

lmages are for reference only.KBU2508G
GLASS PASSIVATED BRIDGE RECTIFIE
Datasheet4-SIP, KBU
25,531 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 800 V Through Hole KBU
KBU2508G
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | HY Electronic (Cayman) Limited |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 25 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 12.5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 800 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, KBU |
| Supplier Device Package | KBU |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

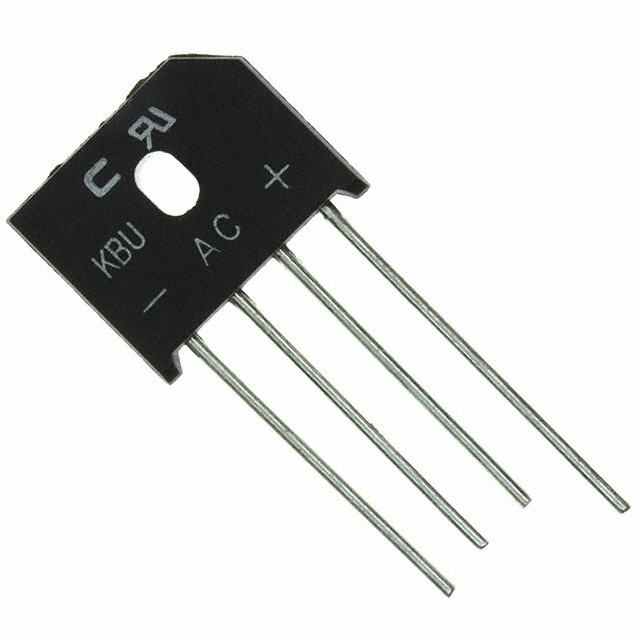

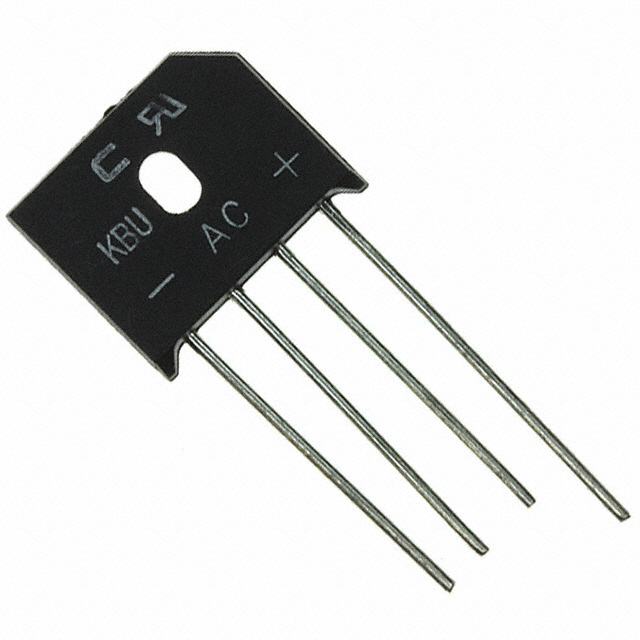

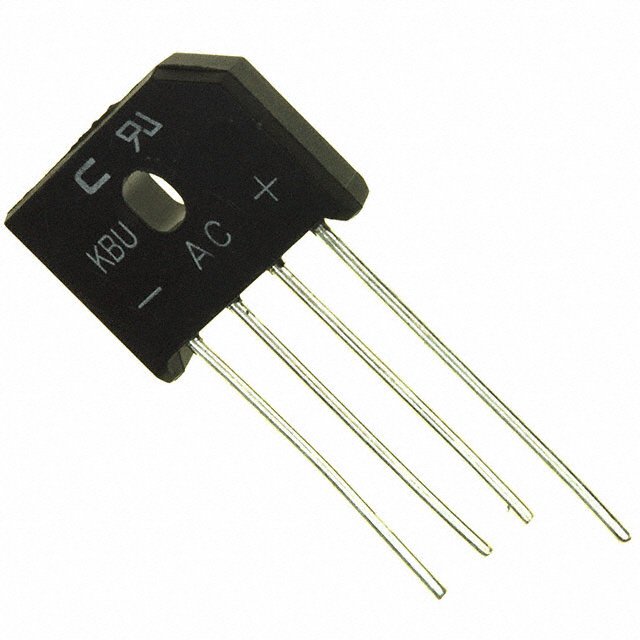

| Part Number | KBU2508 | KBU2508-G | KBU25005-G | KBU2501-G |
| Manufacturer | Good-Ark Semiconductor | Comchip Technology | Comchip Technology | Comchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BRIDGE RECTIFIER, GENERAL PURPOS | BRIDGE RECT 1PHASE 800V 3.6A KBU | BRIDGE RECT 1PHASE 50V 3.6A KBU | BRIDGE RECT 1PHASE 100V 3.6A KBU |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Tray | Bulk |
