Product CatalogPart Number
KC1901N
Manufacturer
E-SwitchDescription
SWITCH ROTARY DIP SP9T 0.1A 16V
Datasheet
DatasheetPackage
-
In Stock
83,124 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
KC1901N
KC1901N

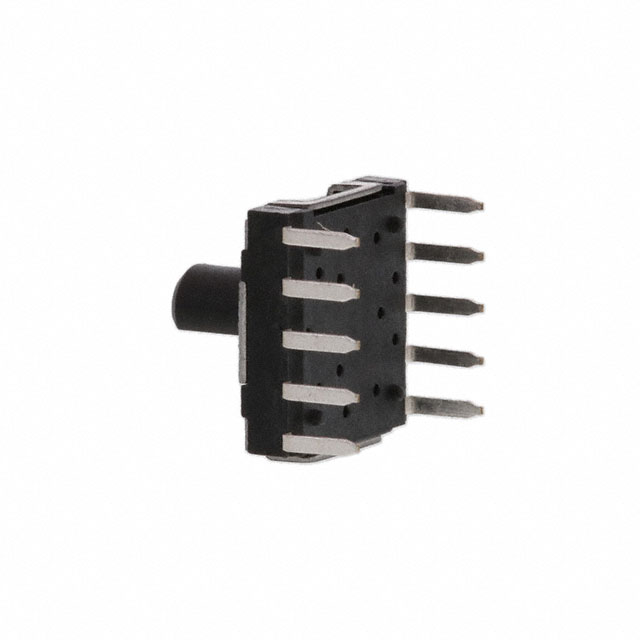

lmages are for reference only.Payment Methods
Delivery Services
Dip Switch SP9T 9 Position Through Hole Rotary with Shaft Actuator 100mA 16VDC
Quick Inquiry
KC1901N
Specifications
| Category | Switches - DIP Switches - |
| Manufacturer | E-Switch |
| Series | KC1901 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Circuit | SP9T |
| Number of Positions | 9 |
| Current Rating (Amps) | 100mA |
| Voltage Rating | 16VDC |
| Actuator Type | Rotary with Shaft |
| Actuator Level | Raised |
| Contact Material | Copper Alloy |
| Contact Finish | Silver |
| Height Above Board | 0.386" (9.80mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | No |
| Features | - |
| Operating Temperature | - |
| Body Material | - |
| Length | 0.488" (12.40mm) |
| Mechanical Life | 10,000 Cycles |
| Electrical Life | 10,000 Cycles |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|
| Part Number | KC1901A | KAS1102ET | KT08RH | KAN1106RR (W/E-LOGO) |
| Manufacturer | E-Switch | E-Switch | CIT Relay and Switch | E-Switch |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | SWITCH ROTARY DIP SP9T 0.1A 16V | SWITCH SLIDE DIP SPST 0.025A 24V | SWITCH SLIDE DIP SPST 0.025A 24V | SWITCH SLIDE DIP SPST 0.025A 24V |
| Series | KC1901 | KAS | KT | KAN |
| Packaging | Bulk | Tube | Tube | Tape & Reel (TR) |
