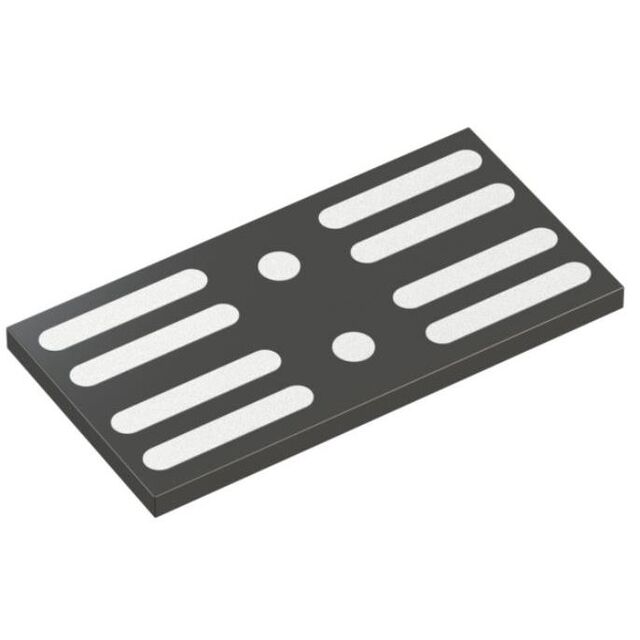

KFCAB21490LE
lmages are for reference only.KFCAB21490LE
MOSFET 2N-CH 12V 13.5A 10SMD
Datasheet10-SMD, No Lead
90,328 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 12V 13.5A (Ta) 540mW (Ta) Surface Mount 10-SMD
KFCAB21490LE
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Nuvoton Technology Corporation |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) Common Drain |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 12V |
| Current - Continuous Drain (Id) @ 25°C | 13.5A (Ta) |
| Rds On (Max) @ Id, Vgs | 2.75mOhm @ 6A, 4.5V |
| Vgs(th) (Max) @ Id | 1.4V @ 1.11mA |
| Gate Charge (Qg) (Max) @ Vgs | 25nC @ 4V |
| Input Capacitance (Ciss) (Max) @ Vds | 3570pF @ 10V |
| Power - Max | 540mW (Ta) |
| Operating Temperature | 150°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD, No Lead |
| Supplier Device Package | 10-SMD |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

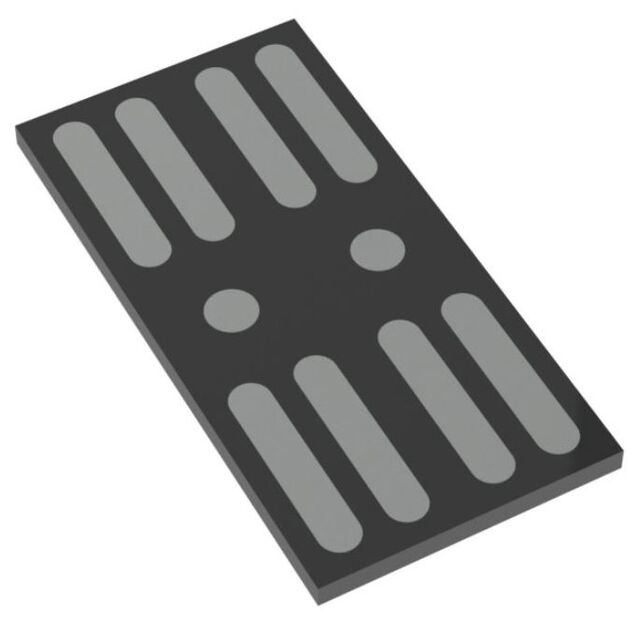

| Part Number | KFCAB21490L | KFCAB21520L | KFCAB21520LE | KFC4B21080L |
| Manufacturer | Nuvoton Technology Corporation | Nuvoton Technology Corporation | Nuvoton Technology Corporation | Nuvoton Technology Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET 2N-CH 12V 13.5A 10SMD | MOSFET 2N-CH 12V 16A 10SMD | MOSFET 2N-CH 12V 16A 10SMD | MOSFET 12V 2.9A 4CSP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
