KHAU-11D11-24

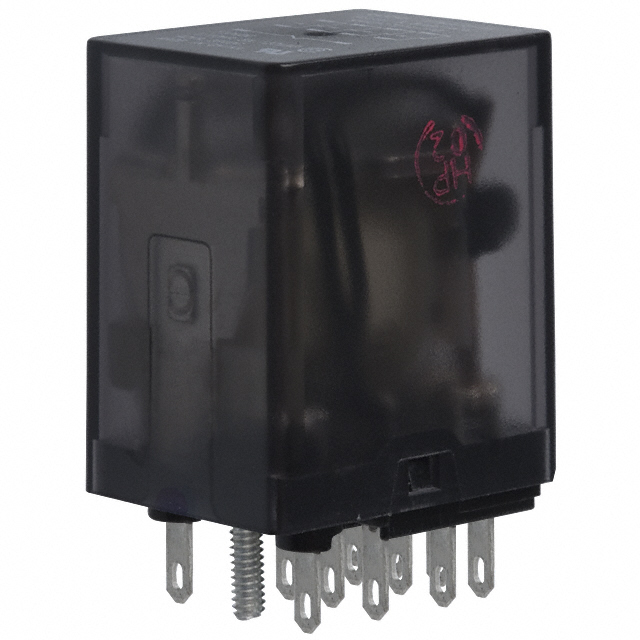

lmages are for reference only.KHAU-11D11-24
RELAY GEN PURPOSE DPDT 3A 24V
Datasheet-
35,356 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable
KHAU-11D11-24
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | KHA |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 3 A |
| Switching Voltage | 240VAC - Nom |
| Load - Max Switching | - |
| Coil Current | 37.5 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | - |
| Operate Time | 13 ms |
| Release Time | 6 ms |
| Operating Temperature | -45°C ~ 70°C |
| Contact Material | Silver (Ag) |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 690 Ohms |
| Base Product Number | KHAU-11D |
| Product Attribute |  |
 |
 |
 |
| Part Number | KHAU-11D11-12 | KHAU-11A11-24 | KHAU-11A16-120 | KHAU-11D12-12 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | RELAY GEN PURPOSE DPDT 3A 12V | RELAY GEN PURPOSE DPDT 3A 24V | RELAY GEN PURPOSE DPDT 5A 120V | RELAY GEN PURPOSE DPDT 5A 12V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Bulk | Bulk | Bulk | Bulk |
