KJB4812SBO-10A
lmages are for reference only.KJB4812SBO-10A
NON-ISOLATED MODULE DC DC CONVER
DatasheetSixteenth Brick
26,167 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 12V 10A 18V - 85V Input
KJB4812SBO-10A
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 85V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 120 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 95% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Sixteenth Brick |
| Size / Dimension | 1.30" L x 0.90" W x 0.45" H (33.0mm x 22.9mm x 11.4mm) |
| Supplier Device Package | Sixteenth Brick |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
| Product Attribute | |
 |
 |
 |

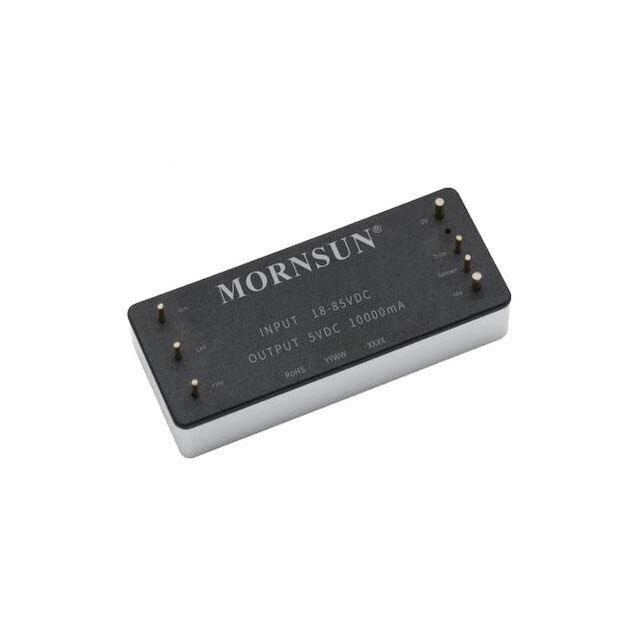

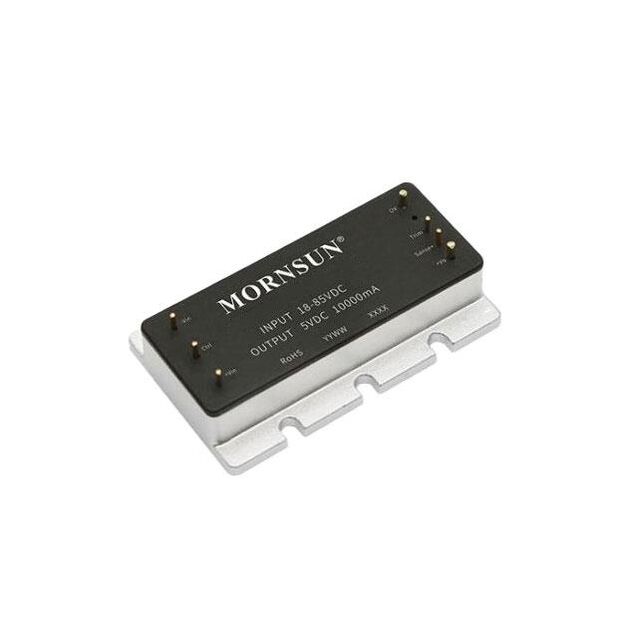

| Part Number | KJB4812SBO-10A | KJB4805EB-10A | KJB4805EBF-10A | KJB4805SBO-10A |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | NON-ISOLATED MODULE DC DC CONVER | NON-ISOLATED MODULE DC DC CONVER | NON-ISOLATED MODULE DC DC CONVER | NON-ISOLATED MODULE DC DC CONVER |
| Series | ||||
| Packaging | KJB48xxSBO-10A | KJB48xxEB-10A | KJB48xxEBF-10A | KJB48xxSBO-10A |
