KMH25VS682M22X30T2
lmages are for reference only.Payment Methods
Delivery Services
6800 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 73mOhm @ 120Hz 2000 Hrs @ 105°C
KMH25VS682M22X30T2
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chemi-Con |
| Series | KMH |
| Packaging | Tray |
| RoHS Status | |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 73mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.86 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.0088 A @ 100 kHz |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |

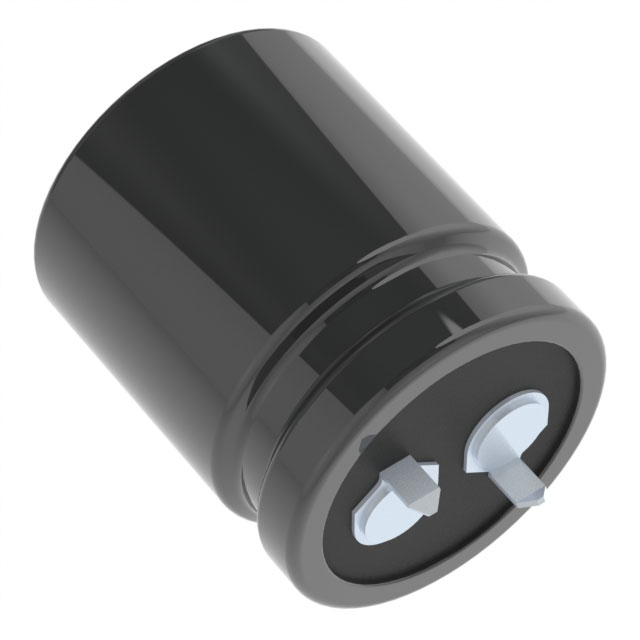

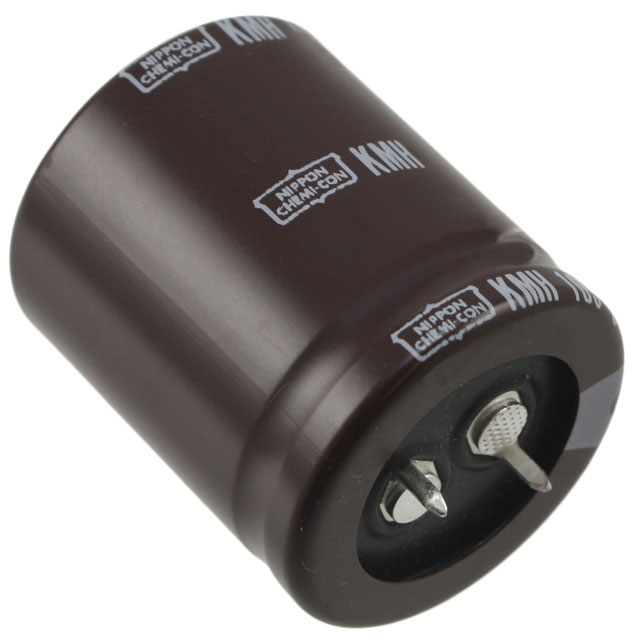

| Part Number | KMH100VN122M25X35T2 | KMH100VN182M30X35T2 | KMH100VS102M25X30T2 | KMH100VS122M22X40T2 |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | ||||
| Description | CAP ALUM 1200UF 20% 100V SNAP TH | CAP ALUM 1800UF 20% 100V SNAP TH | CAP ALUM 1000UF 20% 100V SNAP TH | CAP ALUM 1200UF 20% 100V SNAP TH |
| Series | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Packaging | Tray | Tray | Tray | Tray |
