KMZ1608BHR601CTDH5

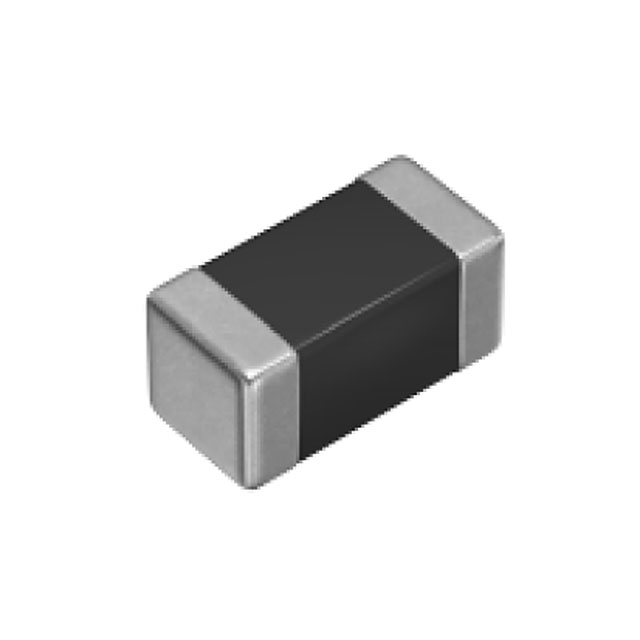

lmages are for reference only.KMZ1608BHR601CTDH5
FERRITE BEAD 600 OHM 0603 1LN
Datasheet0603 (1608 Metric)
96,175 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
600 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 0603 (1608 Metric) 500mA 400mOhm
KMZ1608BHR601CTDH5
| Category | Filters - Ferrite Beads and Chips - |
| Manufacturer | TDK Corporation |
| Series | KMZ-HR |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Signal Line |
| Number of Lines | 1 |
| Impedance @ Frequency | 600 Ohms @ 100 MHz |
| Current Rating (Max) | 500mA |
| DC Resistance (DCR) (Max) | 400mOhm |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Package / Case | 0603 (1608 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.030" (0.75mm) |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.80mm) |
| Features | Soft Termination |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | KMZ1608BHR102CTD25 | KMZ1608AHR252BTD25 | KMZ1608DHR121CTDH5 | KMZ1608DHR241CTD25 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FERRITE BEAD 1K OHM 0603 1LN | FERRITE BEAD 2.5K OHM 0603 1LN | FERRITE BEAD 120 OHM 0603 1LN | FERRITE BEAD 240 OHM 0603 1LN |
| Series | KMZ-HR | KMZ-HR | KMZ-HR | KMZ-HR |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
