KTS1605EUB-1-TR
lmages are for reference only.KTS1605EUB-1-TR
5A SLEW RATE CONTROLLED LOAD SWI
Datasheet6-WFBGA, WLCSP
54,366 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Power Switch/Driver 1:1 N-Channel 5A 6-WLCSP (1.0x1.5)
KTS1605EUB-1-TR
| Category | Integrated Circuits (ICs) - Power Management PMIC - Power Distribution Switches-Load Drivers |
| Manufacturer | Kinetic Technologies |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 1.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 5A |
| Rds On (Typ) | 10.2mOhm |
| Input Type | Non-Inverting |
| Features | Slew Rate Controlled |
| Fault Protection | Reverse Current |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-WLCSP (1.0x1.5) |
| Package / Case | 6-WFBGA, WLCSP |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

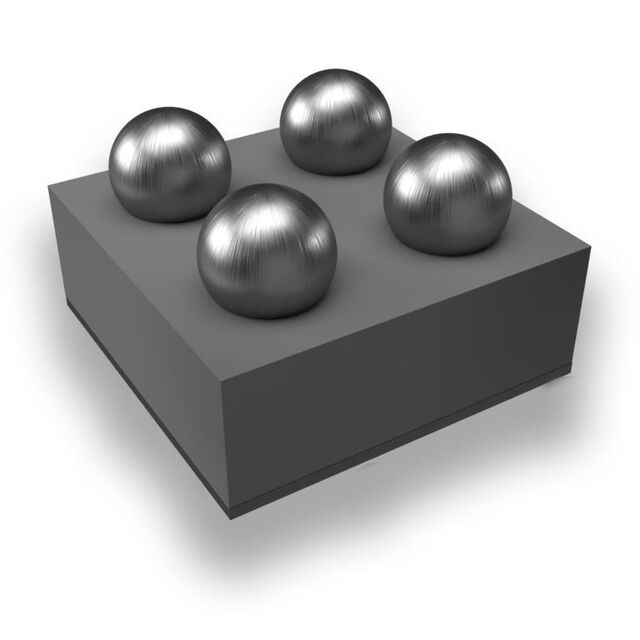

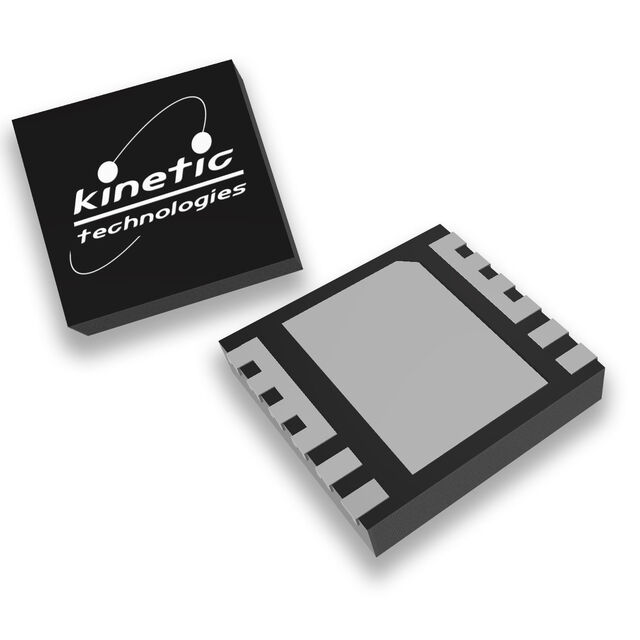

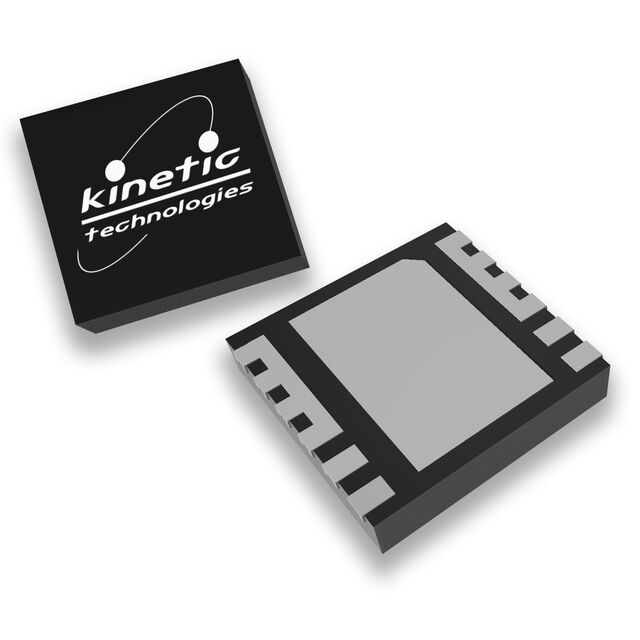

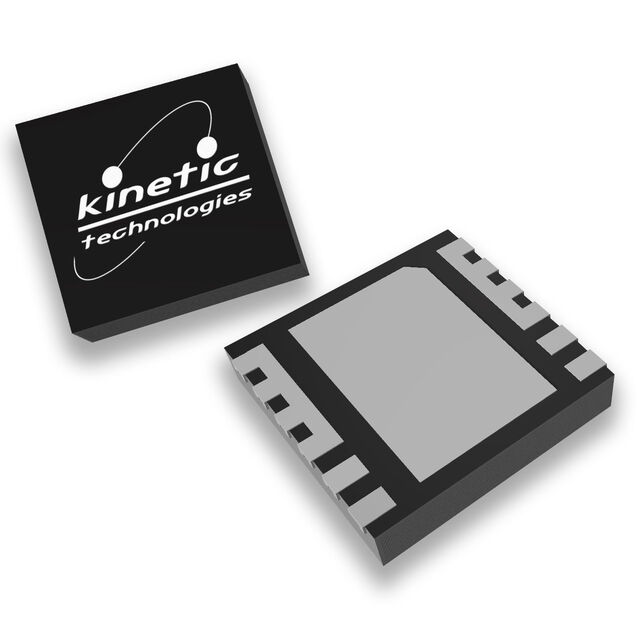

| Part Number | KTS1601EUM-1-TR | KTS1640EDV-TR | KTS1640QGDV-TR | KTS1641EDV-TR |
| Manufacturer | Kinetic Technologies | Kinetic Technologies | Kinetic Technologies | Kinetic Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 2.0A SLEW RATE CONTROLLED LOAD S | LOAD SWITCH WITH 27V OVP AND REV | AUTOMOTIVE LOAD SWITCH WITH 27V | LOAD SWITCH WITH 20.3V OVP AND R |
| Series | Kinetic Technologies | Kinetic Technologies | Kinetic Technologies | Kinetic Technologies |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
