KU-5A35-120
lmages are for reference only.KU-5A35-120
RELAY GEN PURPOSE SPDT 10A 120V
Datasheet-
54,882 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPDT (1 Form C) 120VAC Coil Chassis Mount
KU-5A35-120
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | KU |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Chassis Mount |
| Coil Voltage | 120VAC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 240VAC - Max |
| Load - Max Switching | - |
| Coil Current | 17.5 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | 102 VAC |
| Must Release Voltage | - |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -45°C ~ 70°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 2.25 kOhms |
| Base Product Number | KU-5A35 |
| Product Attribute |  |
 |
 |
|

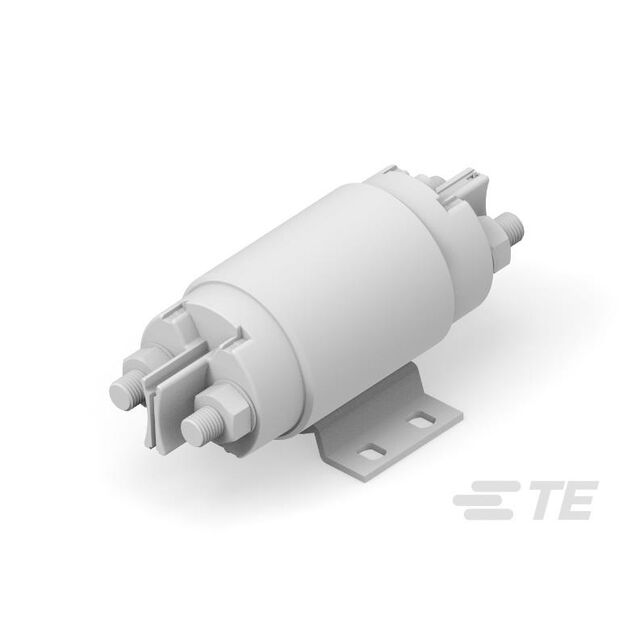

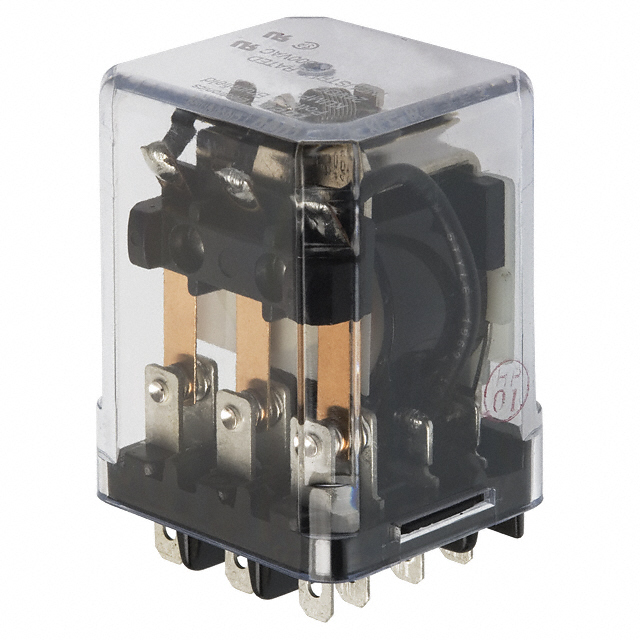

| Part Number | K1126327 | KU-6000 | KUMP-14D18-24 | KUE-90005 |
| Manufacturer | TE Connectivity Deutsch Connectors | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | RELAY 29-121-12 | RELAY GEN PURP | RELAY GEN PURPOSE 3PDT 15A 24V | RELAY GEN PURPOSE 10A |
| Series | TE Connectivity Deutsch Connectors | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Bulk | Bulk | Tray | Bulk |
