KUP-14D45-12

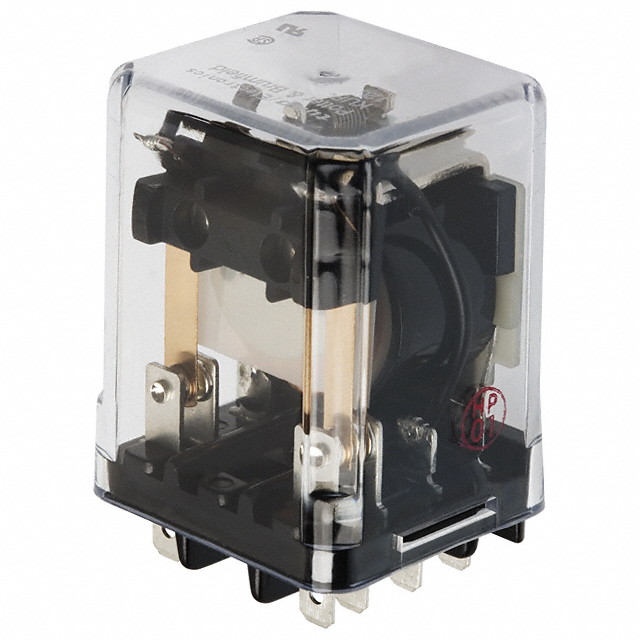

lmages are for reference only.KUP-14D45-12
RELAY GEN PURPOSE 3PDT 10A 12V
Datasheet-
87,360 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay 3PDT (3 Form C) 12VDC Coil Socketable
KUP-14D45-12
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | KUP |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Socketable |
| Coil Voltage | 12VDC |
| Contact Form | 3PDT (3 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 240VAC - Max |
| Load - Max Switching | 2400VA |
| Coil Current | 100 mA |
| Coil Type | Non Latching |
| Features | Lighted Indicator, Test Button |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | - |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -45°C ~ 70°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 120 Ohms |
| Base Product Number | KUP-14 |
| Product Attribute |  |
 |
 |
 |
| Part Number | KUP-14D45-24 | KUP-14D45-48 | KUP-14D45F-110 | KUP-14A11-24 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | RELAY GEN PURPOSE 3PDT 10A 24V | RELAY GEN PURPOSE 3PDT 10A 48V | RELAY GEN PURPOSE 3PDT 10A 110V | RELAY GEN PURPOSE 3PDT 5A 24V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Bulk | Tray | Bulk | Bulk |
