L02011R0AHSTR\500
lmages are for reference only.L02011R0AHSTR\500
FIXED IND 1NH 400MA 200 MOHM SMD
Datasheet0201 (0603 Metric)
82,416 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 nH Unshielded Thin Film Inductor 400 mA 200mOhm Max 0201 (0603 Metric)
L02011R0AHSTR\500
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | KYOCERA AVX |
| Series | Accu-L® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Thin Film |
| Material - Core | Non-Magnetic |
| Inductance | 1 nH |
| Tolerance | ±0.05nH |
| Current Rating (Amps) | 400 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 200mOhm Max |
| Q @ Freq | 7 @ 450MHz |
| Frequency - Self Resonant | 26GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 450 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 (0603 Metric) |
| Size / Dimension | 0.024" L x 0.013" W (0.60mm x 0.33mm) |
| Height - Seated (Max) | 0.011" (0.28mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |

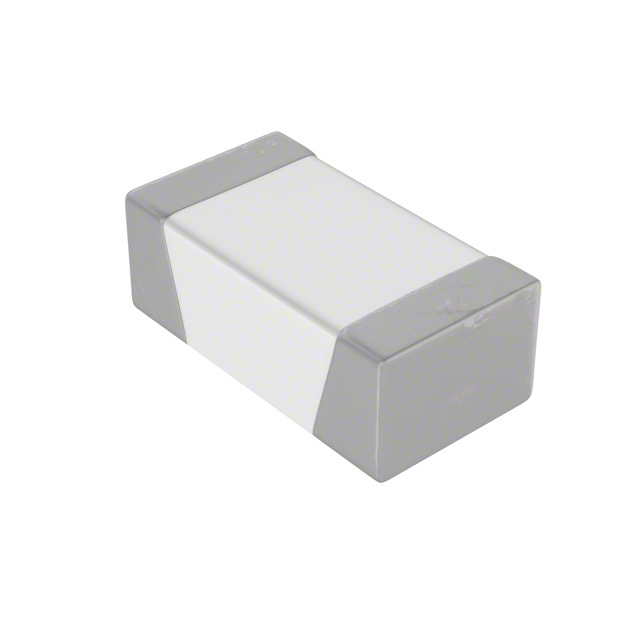

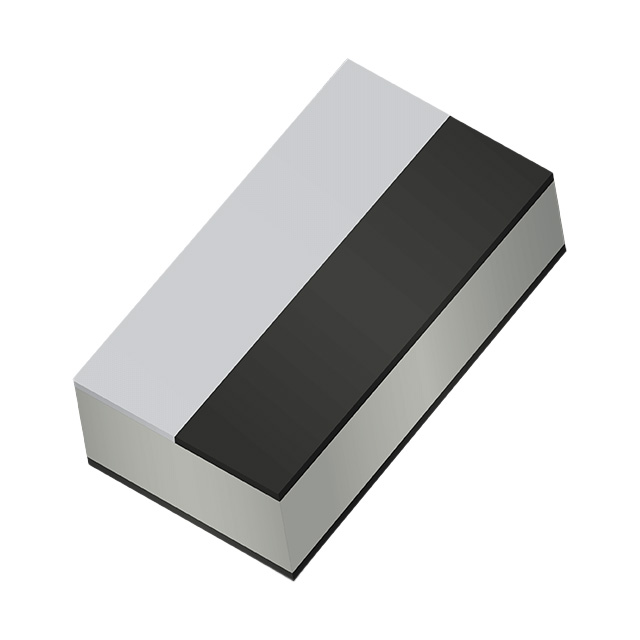

| Part Number | L02011R2AHSTR\500 | L02011R5BHSTR\500 | L02011R5BHSTR\500 | L02011R8BHSTR |
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 1.2NH 300MA 300MOHM SM | FIXED IND 1.5NH 250MA 500MOHM SM | FIXED IND 1.5NH 250MA 500MOHM SM | FIXED INDUCTOR |
| Series | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
