L196L-QBC-L-TR

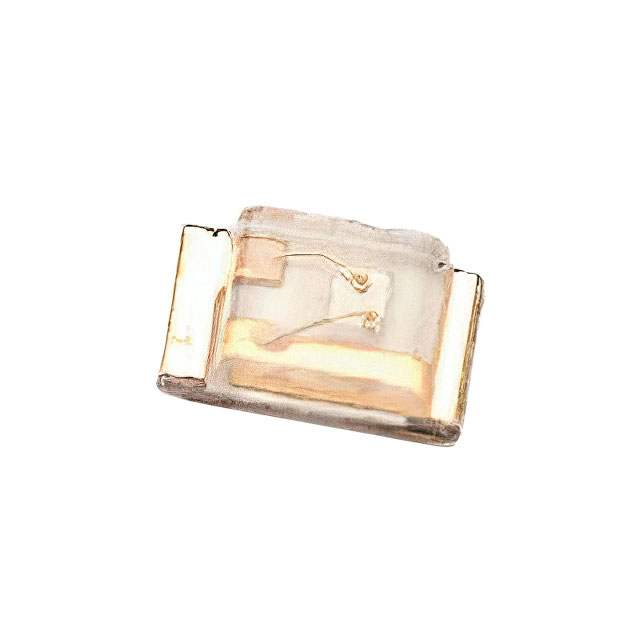

lmages are for reference only.L196L-QBC-L-TR
LED BLUE CLEAR 0603 SMD
Datasheet0603 (1608 Metric)
65,312 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Blue 470nm LED Indication - Discrete 2.6V 0603 (1608 Metric)
L196L-QBC-L-TR
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | American Opto Plus LED |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Blue |
| Configuration | - |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 27.5mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.00mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 2.6V |
| Current - Test | 5mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 470nm |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Height (Max) | 0.50mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | L196L-QBC | L196L-QBC-L | L196L-QBC-TR | L196B-QBC |
| Manufacturer | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED BLUE CLEAR 0603 SMD | LED BLUE CLEAR 0603 SMD | LED BLUE CLEAR 0603 SMD | LED BLUE CLEAR 0603 SMD |
| Series | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
