L4936N
lmages are for reference only.L4936N
IC REG LIN POS ADJ 11MULTIWATT
DatasheetMultiwatt-11 (Vertical, Bent and Staggered Leads)
63,647 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Adjustable (Fixed) 2 Output 50mA, 500mA 11-Multiwatt
L4936N
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | STMicroelectronics |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Adjustable (Fixed) |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 25V |
| Voltage - Output (Min/Fixed) | 5V, Tracking |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.4V @ 50mA, 0.6V @ 500mA |
| Current - Output | 50mA, 500mA |
| Current - Quiescent (Iq) | - |
| PSRR | - |
| Control Features | Enable, Reset |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -55°C ~ 150°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Multiwatt-11 (Vertical, Bent and Staggered Leads) |
| Supplier Device Package | 11-Multiwatt |
| Base Product Number | L4936 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |

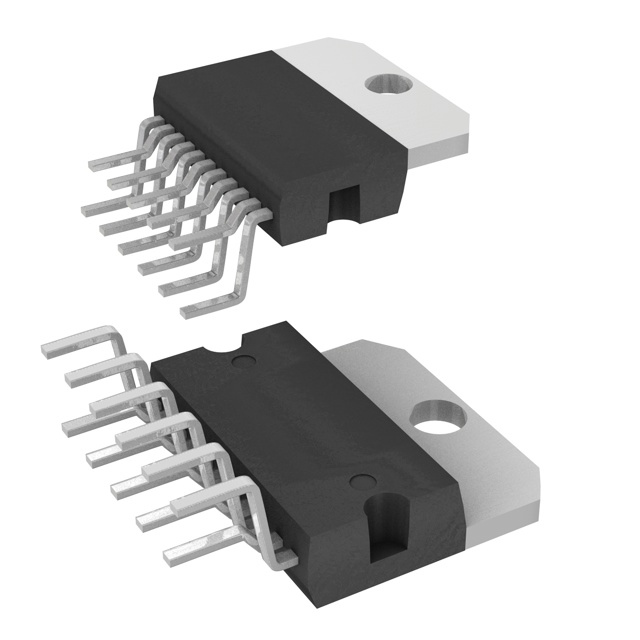

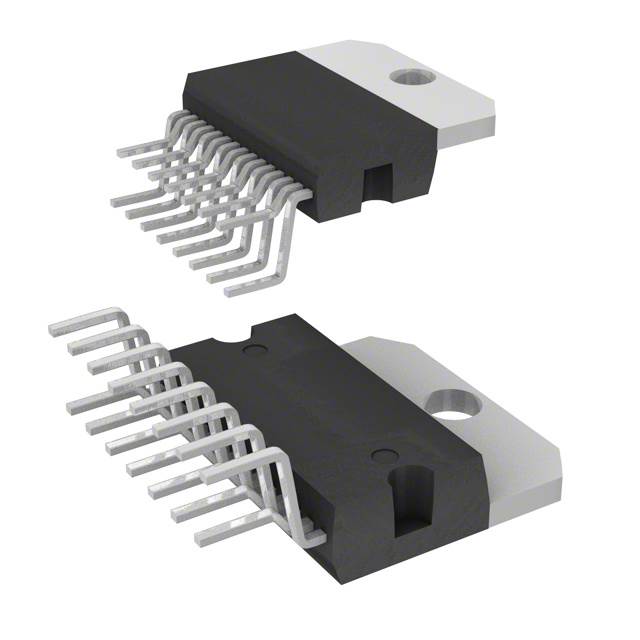

| Part Number | L4936E | L4936EH | L4909 | L4925 |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LIN POS ADJ 11MULTIWATT | IC REG LIN POS ADJ 15MULTIWATT | IC REG LIN POS ADJ 15MULTIWATT | IC REG LIN 5V 500MA 5PENTAWATT |
| Series | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Packaging | Tube | Tube | Tube | Tube |
