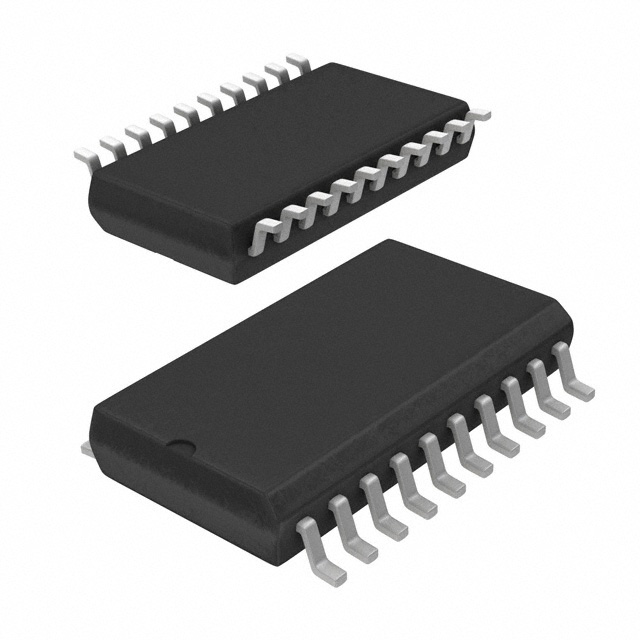

IC PWR DRIVER N-CHAN 1:8 20SOIC
Datasheet20-SOIC (0.295", 7.50mm Width)
66,117 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Power Switch/Driver 1:8 N-Channel 450mA 20-SO
L9826
| Category | Integrated Circuits (ICs) - Power Management PMIC - Power Distribution Switches-Load Drivers |
| Manufacturer | STMicroelectronics |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Switch Type | Latched Driver |
| Number of Outputs | 8 |
| Ratio - Input:Output | 1:8 |
| Output Configuration | Low Side |
| Output Type | N-Channel |
| Interface | SPI |
| Voltage - Load | 45V (Max) |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | 450mA |
| Rds On (Typ) | 1.5Ohm |
| Input Type | - |
| Features | - |
| Fault Protection | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-SO |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Base Product Number | L9826 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | L9820D | L9820D013TR | L9822E | L9822EPD |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

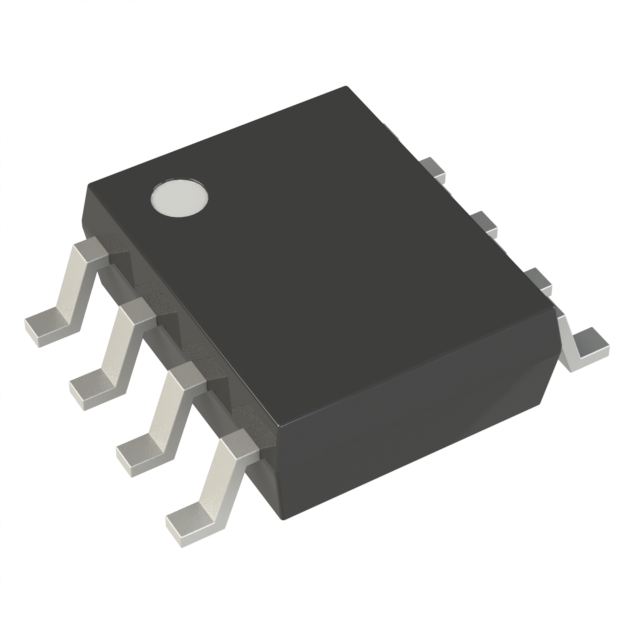

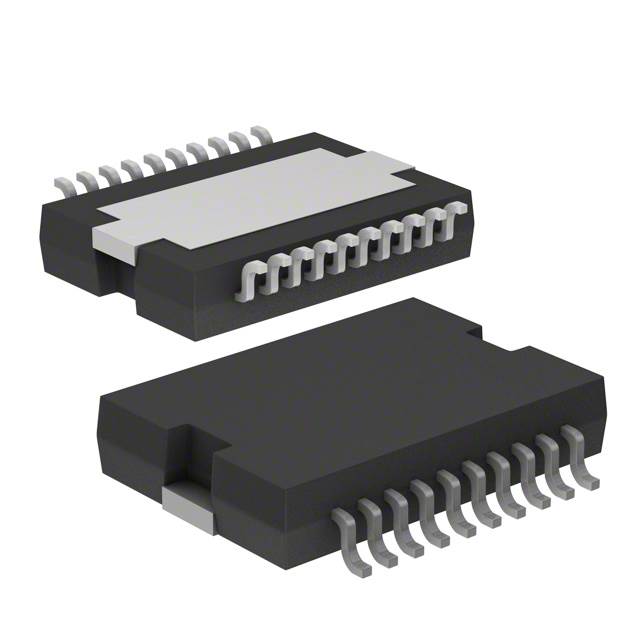

| Description | IC PWR DRIVER HIGH SIDE 1:1 8SO | IC PWR DRIVER 1:1 8SO | IC PWR DRIVER 1:8 15MULTIWATT | IC PWR DRIVER 1:8 PWRSO20 |
| Series | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Packaging | Tube | Tape & Reel (TR) | Tube | Tube |
