LAO-100V681MS24PX#B
lmages are for reference only.LAO-100V681MS24PX#B
CAP ALUM 680UF 20% 100V SNAP TH
DatasheetRadial, Can - Snap-In
91,420 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
680 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 1000 Hrs @ 85°C
LAO-100V681MS24PX#B
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Elna America |
| Series | LAO, TONEREX |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 800 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.064 A @ 20 kHz |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
|
 |
 |

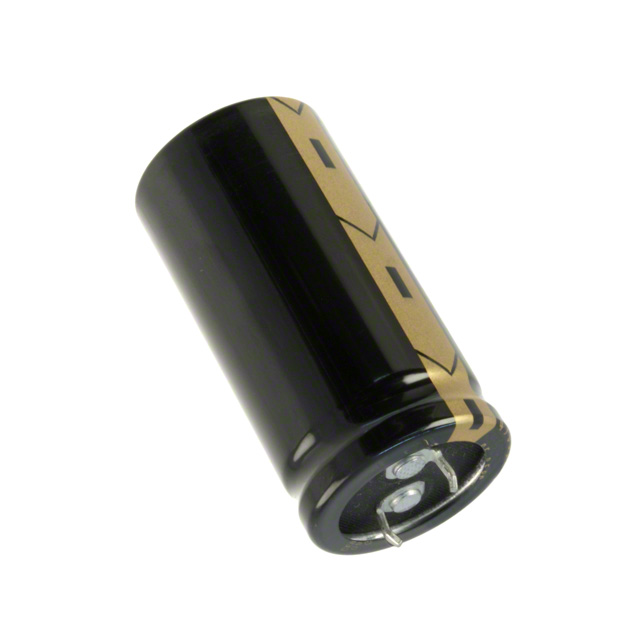

| Part Number | LAO-25V103MS37PX#B | LAO-25V103MS37PX#B | LAO-25V682MS26PX#B | LAO-50V472MS37PX#B |
| Manufacturer | Elna America | Elna America | Elna America | Elna America |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 10000UF 20% 25V SNAP TH | CAP ALUM 10000UF 20% 25V SNAP TH | CAP ALUM 6800UF 20% 25V SNAP TH | CAP ALUM 4700UF 20% 50V SNAP TH |
| Series | Elna America | Elna America | Elna America | Elna America |
| Packaging | Bulk | Bulk | Bulk | Bulk |
