LBB120H

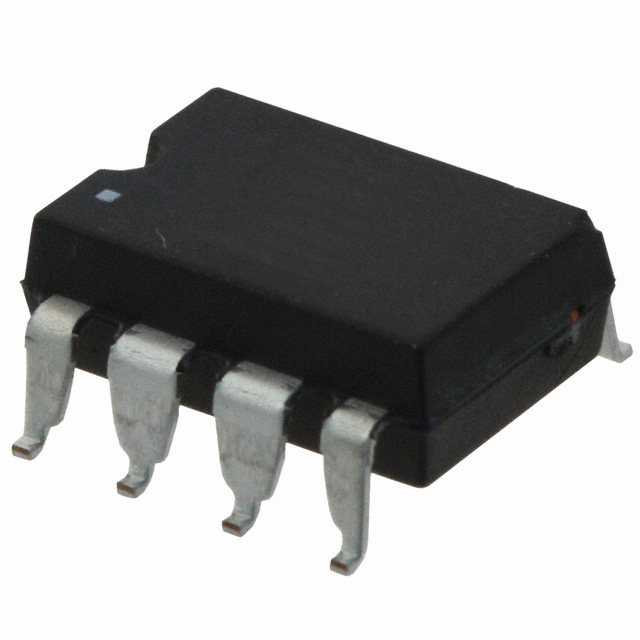

lmages are for reference only.LBB120H
SSR RELAY SPST-NC 170MA 0-250V
Datasheet8-DIP (0.300", 7.62mm)
27,453 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Solid State SPST-NC (1 Form B) x 2 8-DIP (0.300", 7.62mm)
LBB120H
| Category | Relays - Solid State Relays SSR - |
| Manufacturer | IXYS Integrated Circuits Division |
| Series | LBB, OptoMOS® |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Circuit | SPST-NC (1 Form B) x 2 |
| Output Type | AC, DC |
| Voltage - Input | 1.2VDC |
| Voltage - Load | 0 V ~ 250 V |
| Load Current | 170 mA |
| Termination Style | PC Pin |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
| Approval Agency | CSA, EN, UL |
| Grade | - |
| Qualification | - |
| Base Product Number | LBB120 |
| On-State Resistance (Max) | 20 Ohms |
| Product Attribute |  |
 |
|
 |
| Part Number | LBB120 | LBB120P | LBB120PTR | LBB120S |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SSR RELAY SPST-NC 170MA 0-250V | SSR RELAY SPST-NC 170MA 0-250V | SSR RELAY SPST-NC 170MA 0-250V | SSR RELAY SPST-NC 170MA 0-250V |
| Series | LBB, OptoMOS® | LBB, OptoMOS® | LBB, OptoMOS® | LBB, OptoMOS® |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tube |
