LCF121002A350TG

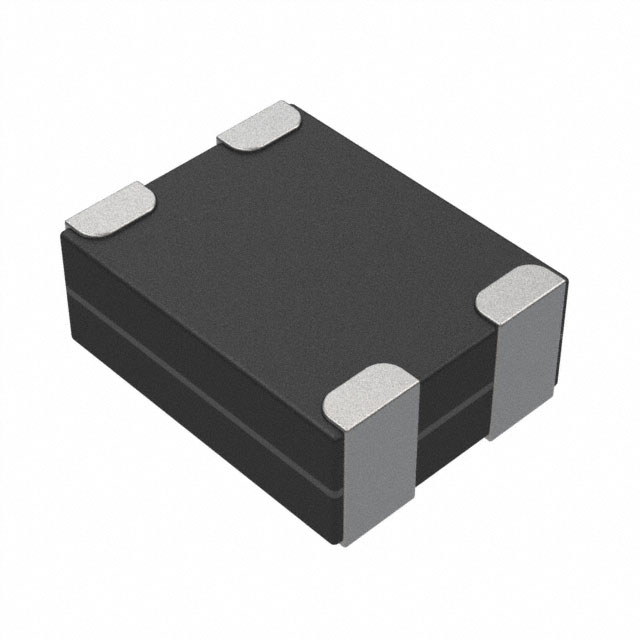

lmages are for reference only.LCF121002A350TG
CMC 100MA 2LN 35 OHM SMD
Datasheet0504 (1210 Metric), 4 Lead
25,896 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2 Line Common Mode Choke Surface Mount 35 Ohms @ 100 MHz 100mA DCR 4Ohm
LCF121002A350TG
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Littelfuse Inc. |
| Series | LCF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 100mA |
| DC Resistance (DCR) (Max) | 4Ohm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.050" L x 0.039" W (1.27mm x 1.00mm) |
| Height (Max) | 0.026" (0.65mm) |
| Package / Case | 0504 (1210 Metric), 4 Lead |
| Base Product Number | - |
| Impedance @ Frequency | 35 Ohms @ 100 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LCF121002A650TG | LCF121002A750TG | LCF121002A900TG | LCF121002B350TG |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 100MA 2LN 65 OHM SMD | CMC 100MA 2LN 75 OHM SMD | CMC 100MA 2LN 90 OHM SMD | CMC 200MA 2LN 35 OHM SMD |
| Series | LCF | LCF | LCF | LCF |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
