LCFE080602W500TG

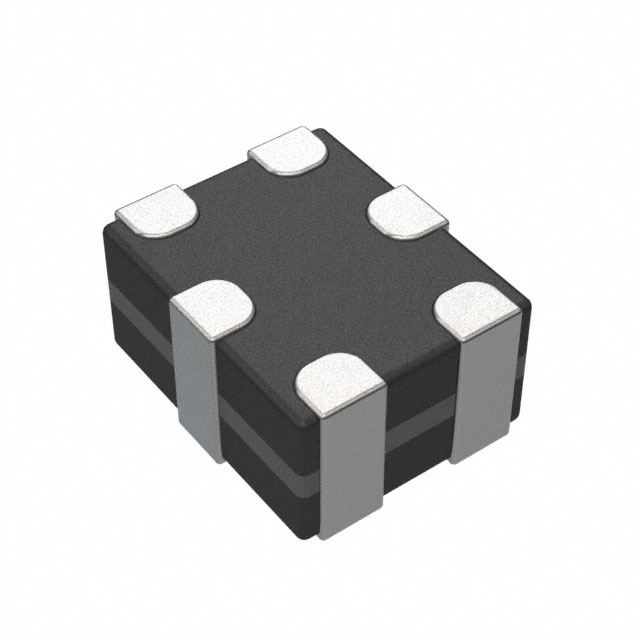

lmages are for reference only.LCFE080602W500TG
CMC 100MA 2LN 50 OHM SMD ESD
Datasheet0302 (0806 Metric), 6 Lead
94,224 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2 Line Common Mode Choke Surface Mount 50 Ohms @ 100 MHz 100mA DCR 7Ohm
LCFE080602W500TG
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Littelfuse Inc. |
| Series | LCFE |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 100mA |
| DC Resistance (DCR) (Max) | 7Ohm |
| Voltage Rating - DC | 5V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Approval Agency | - |
| Features | TVS Diode ESD Protection |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.034" L x 0.026" W (0.87mm x 0.67mm) |
| Height (Max) | 0.022" (0.55mm) |
| Package / Case | 0302 (0806 Metric), 6 Lead |
| Base Product Number | - |
| Impedance @ Frequency | 50 Ohms @ 100 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

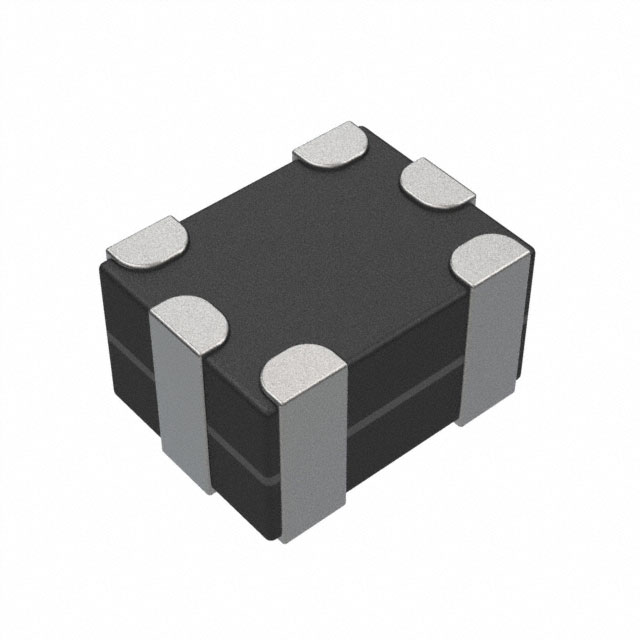

| Part Number | LCFE080602A120TG | LCFE080602A250TG | LCFE080602A750TG | LCFE080602A900TG |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 100MA 2LN 12 OHM SMD ESD | CMC 100MA 2LN 25 OHM SMD ESD | CMC 100MA 2LN 75 OHM SMD ESD | CMC 100MA 2LN 90 OHM SMD ESD |
| Series | LCFE | LCFE | LCFE | LCFE |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
