Product CatalogPart Number
LCRNJ12575GL221MN
Manufacturer
Taiyo YudenDescription
FIXED IND 220UH 1.35A 294MOHM SM
Datasheet
DatasheetPackage
Nonstandard
In Stock
51,474 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
LCRNJ12575GL221MN
LCRNJ12575GL221MN
lmages are for reference only.Payment Methods
Delivery Services
220 µH Shielded Wirewound Inductor 1.1 A 300mOhm Nonstandard
Quick Inquiry
LCRNJ12575GL221MN
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Taiyo Yuden |
| Series | LCRN |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 220 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.1 A |
| Current - Saturation (Isat) | 1.6A |
| Shielding | Shielded |
| DC Resistance (DCR) | 300mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.309" (7.85mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
|
| Part Number | LCRNJ12575GL220MN | LCRNJ12575GL221MN | LCRNJ12575GL100MN | LCRNJ12575GL101MN |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 22UH 4.05A 31.2MOHM SM | FIXED IND 220UH 1.35A 294MOHM SM | FIXED IND 10UH 5.55A 18.72 MOHM | FIXED IND 100UH 2.01A 132MOHM SM |
| Series | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
LCRNJ10145GL100MN
Taiyo Yuden

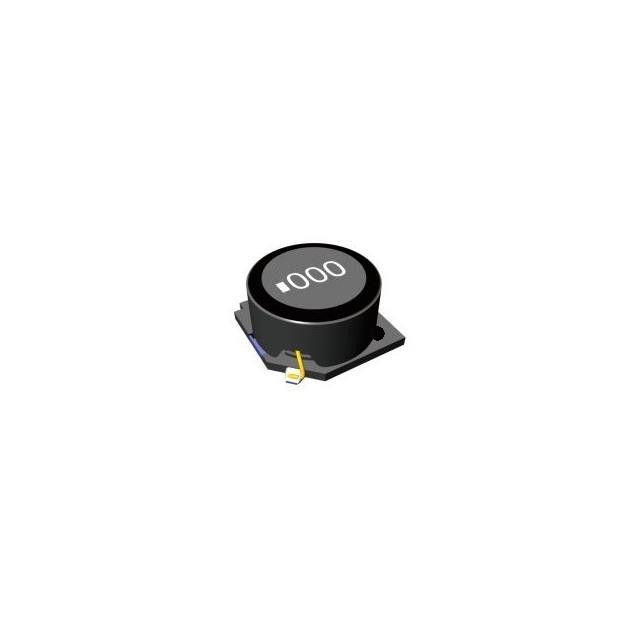

LCRNJ10145GL101MN
