Linear Voltage Regulator IC Positive Fixed 1 Output 150mA DFN1010C-4

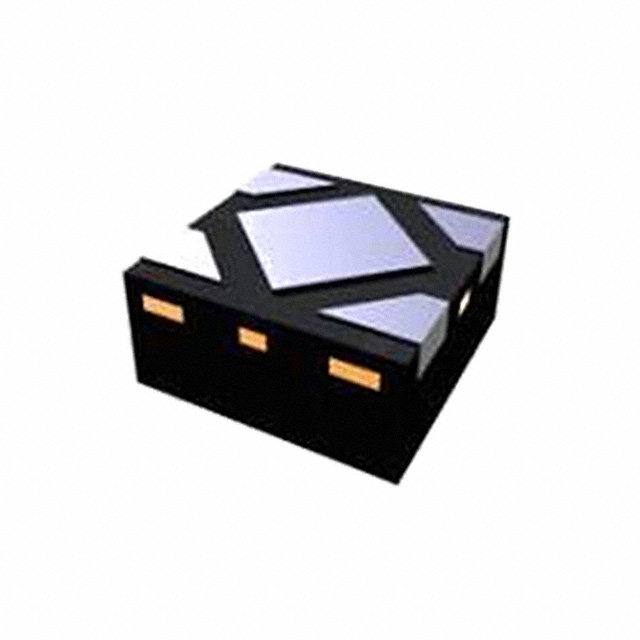

LD6805K/21P,115
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | NXP USA Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.1V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.25V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 35 µA |
| PSRR | 75dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Transient Voltage |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-UDFN Exposed Pad |
| Supplier Device Package | DFN1010C-4 |
| Base Product Number | LD6805 |
| Current - Supply (Max) | 150 µA |
| Product Attribute |  |
 |
 |
 |
| Part Number | LD6805K/20H,115 | LD6805K/20P,115 | LD6805K/22H,115 | LD6805K/22P,115 |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LIN 2V 150MA DFN1010C-4 | IC REG LIN 2V 150MA DFN1010C-4 | IC REG LIN 2.2V 150MA DFN1010C-4 | IC REG LIN 2.2V 150MA DFN1010C-4 |
| Series | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Packaging | Bulk | Bulk | Tape & Reel (TR) | Bulk |
