LDD-700L
lmages are for reference only.LDD-700L
LED DRIVER CC BUCK 2-32V 700MA
Datasheet6-DIP Module, 5 Leads
29,536 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
700mA 2 ~ 32V Constant Current LED Driver Buck Topology 1 Output
LDD-700L
| Category | Power Supplies - Board Mount - LED Drivers - |
| Manufacturer | MEAN WELL USA Inc. |
| Series | LDD-L |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Constant Current |
| Topology | Buck |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output | 2 ~ 32V |
| Current - Output (Max) | 700mA |
| Power (Watts) | - |
| Dimming | PWM |
| Features | Remote On/Off, OTP, SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 95% |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module, 5 Leads |
| Size / Dimension | 0.89" L x 0.39" W x 0.35" H (22.6mm x 9.9mm x 8.9mm) |
| Approval Agency | CE |
| Weight | - |
| Base Product Number | LDD-700 |
| Standard Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

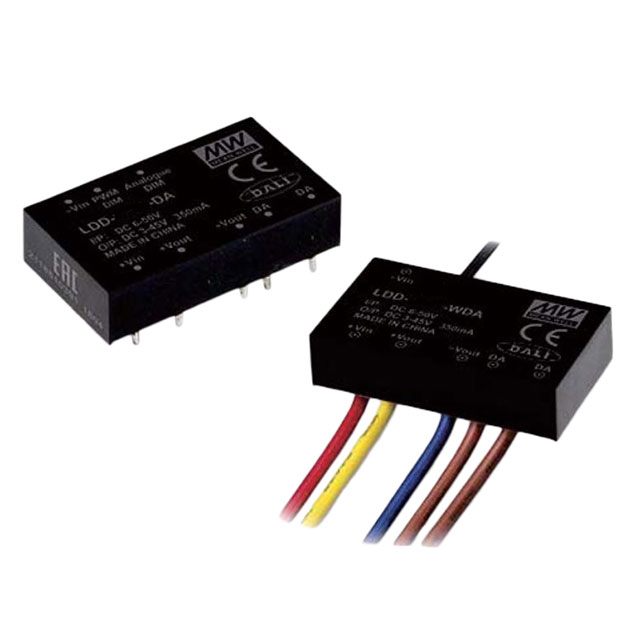

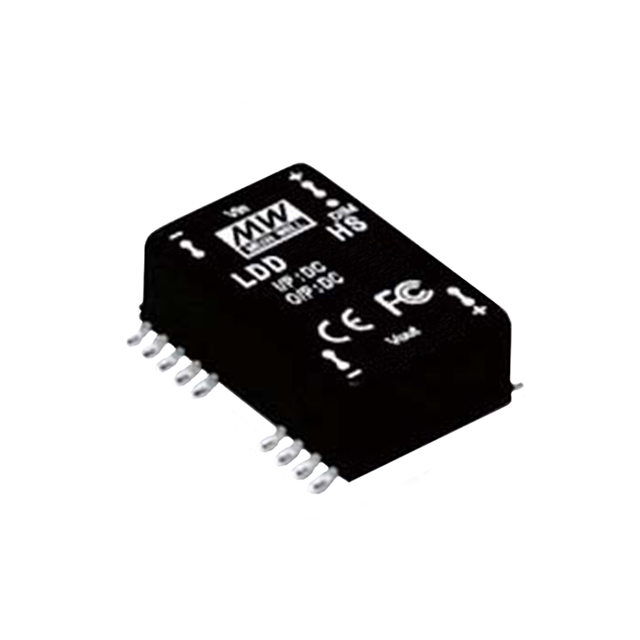

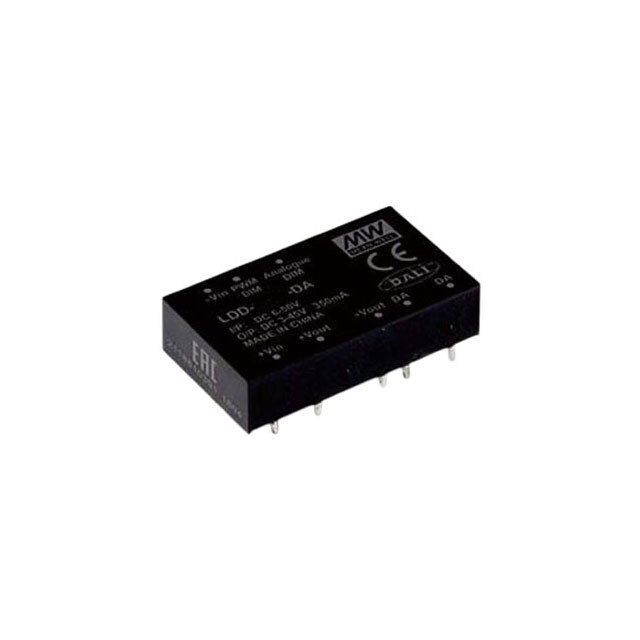

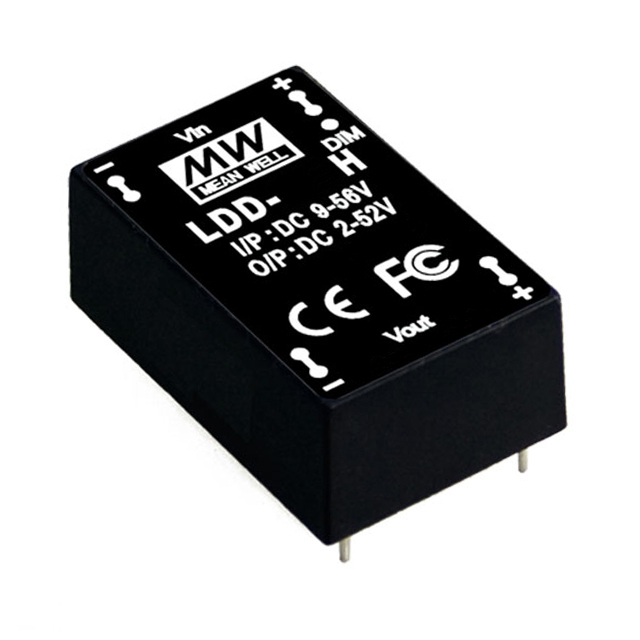

| Part Number | LDD-700H | LDD-700H-DA | LDD-700H-WDA | LDD-700HS |
| Manufacturer | MEAN WELL USA Inc. | MEAN WELL USA Inc. | MEAN WELL USA Inc. | MEAN WELL USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED DRIVER CC BUCK 2-52V 700MA | LED DRIVER CC BUCK 3-45V 700MA | LED DRIVER CC BUCK 3-45V 700MA | LED DRIVER CC BUCK 2-52V 700MA |
| Series | LDD-H | LDD-H-DA | LDD-H-DA | LDD-H |
| Packaging | Tube | Tube | Tube | Tube |
