LDD-HTE304NI
lmages are for reference only.LDD-HTE304NI
DISPLAY 7-SEG 0.3" DBL RED 10DIP
Datasheet10-DIP (0.400", 10.16mm), 9 Leads
53,077 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Anode 2V 10mA 0.591" H x 0.610" W x 0.283" D (15.00mm x 15.50mm x 7.20mm) 10-DIP (0.400", 10.16mm), 9 Leads
LDD-HTE304NI
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Lumex Opto/Components Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 2 |
| Size / Dimension | 0.591" H x 0.610" W x 0.283" D (15.00mm x 15.50mm x 7.20mm) |
| Digit/Alpha Size | 0.30" (7.62mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | Red |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 10mA |
| Millicandela Rating | 2mcd |
| Wavelength - Peak | 635nm |
| Power Dissipation (Max) | 105mW |
| Package / Case | 10-DIP (0.400", 10.16mm), 9 Leads |
| Base Product Number | LDD-HTE304 |
| Display Format | - |
| Product Attribute |  |
 |
 |
 |

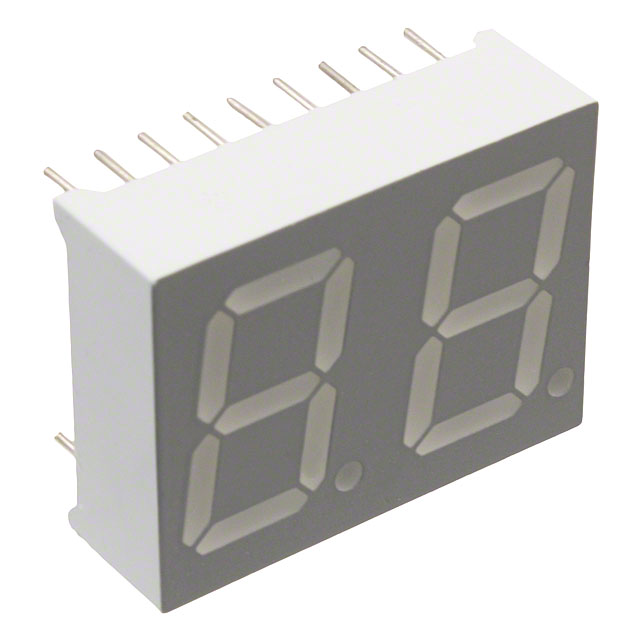

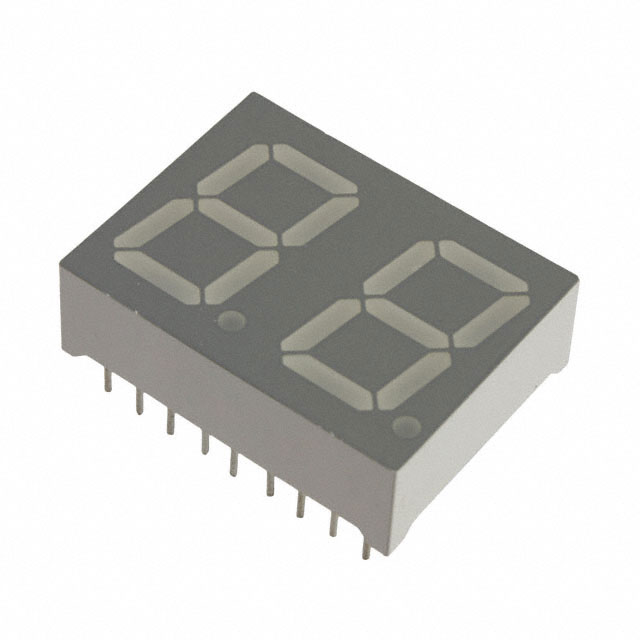

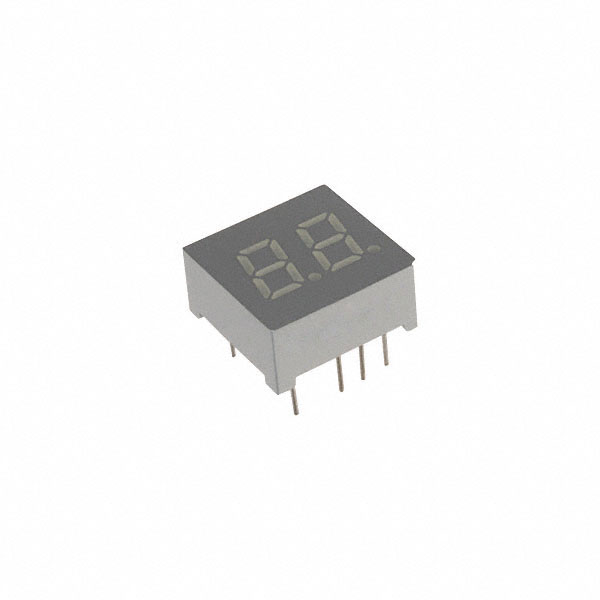

| Part Number | LDD-HTA512RI | LDD-HTA514RI | LDD-HTC514RI | LDD-HTF304NI |
| Manufacturer | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DISPLAY 7SEG 0.56" DBL GRN 18DIP | DISPLAY 7SEG 0.56" DBL RED 18DIP | DISPLAY 7SEG 0.56" DBL RED 18DIP | DISPLAY 7-SEG 0.3" DBL RED 10DIP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
