LDH-45A-1050DA
lmages are for reference only.LDH-45A-1050DA
LED DRIVER CC BOOST 24-43V 1.05A
Datasheet7-DIP Module
24,177 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.05A 24 ~ 43V Constant Current LED Driver Boost Topology 1 Output
LDH-45A-1050DA
| Category | Power Supplies - Board Mount - LED Drivers - |
| Manufacturer | MEAN WELL USA Inc. |
| Series | LDH-45 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Constant Current |
| Topology | Boost |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 18V |
| Voltage - Output | 24 ~ 43V |
| Current - Output (Max) | 1.05A |
| Power (Watts) | 45 W |
| Dimming | DALI |
| Features | Remote On/Off, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 70°C |
| Efficiency | 91% |
| Mounting Type | Through Hole |
| Package / Case | 7-DIP Module |
| Size / Dimension | 2.95" L x 2.09" W x 0.89" H (75.0mm x 53.0mm x 22.7mm) |
| Approval Agency | CE |
| Weight | - |
| Base Product Number | LDH-45A |
| Standard Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LDH-45A-1050 | LDH-45A-350 | LDH-45A-350DA | LDH-45A-500 |
| Manufacturer | MEAN WELL USA Inc. | MEAN WELL USA Inc. | MEAN WELL USA Inc. | MEAN WELL USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

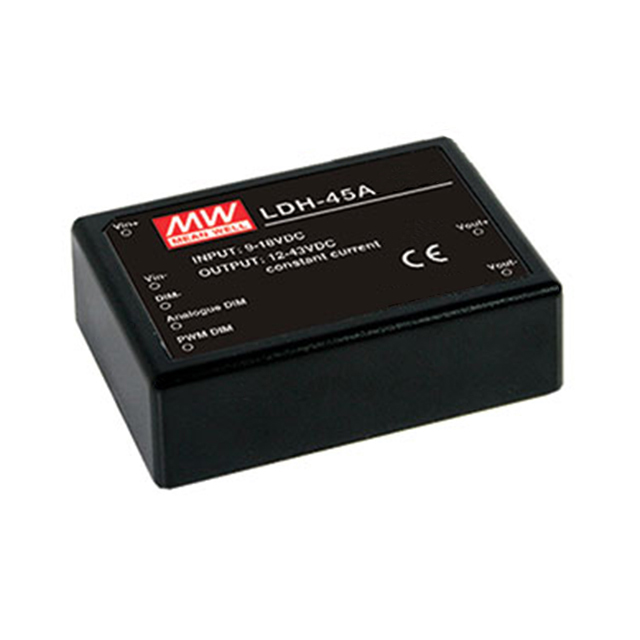

| Description | LED DRIVER CC BOOST 12-43V 1.05A | LED DRIVER CC BOOST 12-86V 350MA | LED DRIVER CC BOOST 24-86V 350MA | LED DRIVER CC BOOST 12-86V 500MA |
| Series | LDH-45 | LDH-45 | LDH-45 | LDH-45 |
| Packaging | Tray | Tray | Box | Tray |
