LFCV-45+
lmages are for reference only.LFCV-45+
LTCC LOW PASS FILTER, DC - 45 MH
Datasheet1210 (3225 Metric), 4 PC Pad
90,356 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
77MHz Low Pass Ceramic Filter 50Ohm 1210 (3225 Metric), 4 PC Pad
LFCV-45+
| Category | Filters - Ceramic Filters - |
| Manufacturer | Mini-Circuits |
| Series | LFCV |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric), 4 PC Pad |
| Frequency | 77MHz |
| Impedance | 50Ohm |
| Bandwidth | - |
| Insertion Loss | 1.2dB |
| Filter Type | Low Pass |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.49mm) |
| Height (Max) | 0.059" (1.50mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |

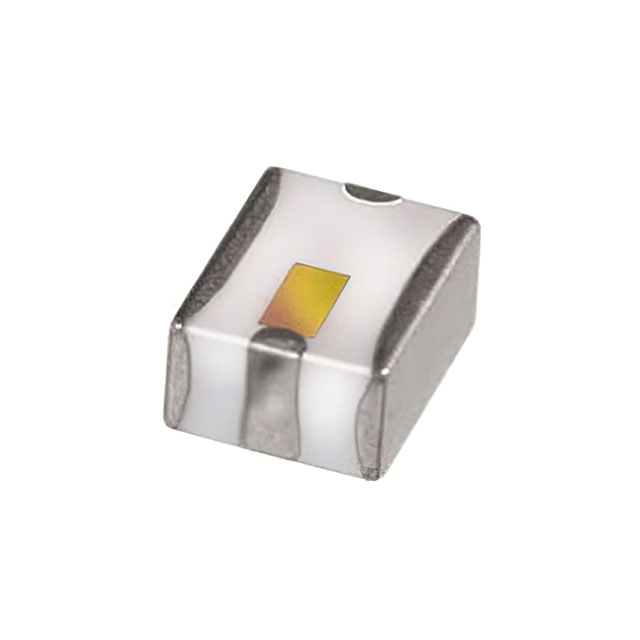

| Part Number | LFCV-45+ | LFCV-1450+ | LFCV-1450+ | LFCV-52+ |
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LTCC LOW PASS FILTER, DC - 45 MH | LTCC LOW PASS FILTER, DC - 1450 | LTCC LOW PASS FILTER, DC - 1450 | LTCC LOW PASS FILTER, DC - 52 MH |
| Series | LFCV | LFCV | LFCV | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
