LFXTAL050632
lmages are for reference only.LFXTAL050632
CRYSTAL 32.7680KHZ 6PF SMD
Datasheet4-SOJ, 5.5mm pitch
34,771 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
32.768 kHz ±10ppm Crystal 6pF 50 kOhms 4-SOJ, 5.5mm pitch
LFXTAL050632
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | IQD Frequency Products |
| Series | 85SMX |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | kHz Crystal (Tuning Fork) |
| Frequency | 32.768 kHz |
| Frequency Stability | - |
| Frequency Tolerance | ±10ppm |
| Load Capacitance | 6pF |
| ESR (Equivalent Series Resistance) | 50 kOhms |
| Operating Mode | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOJ, 5.5mm pitch |
| Size / Dimension | 0.343" L x 0.150" W (8.70mm x 3.80mm) |
| Height - Seated (Max) | 0.098" (2.50mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |

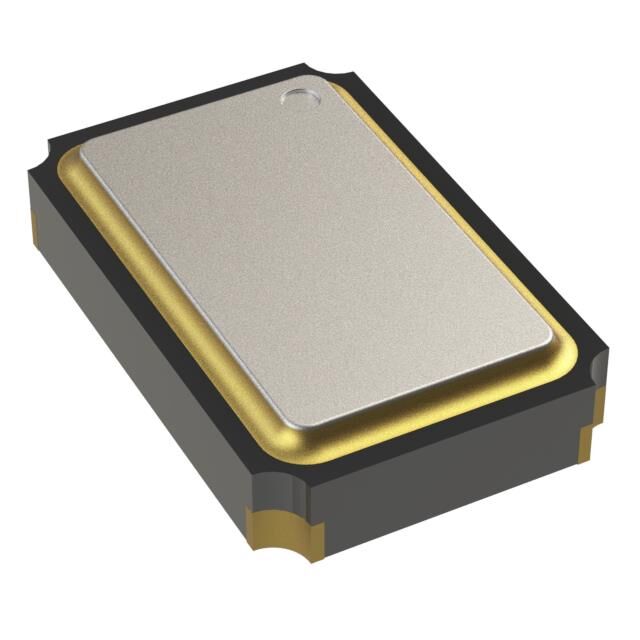

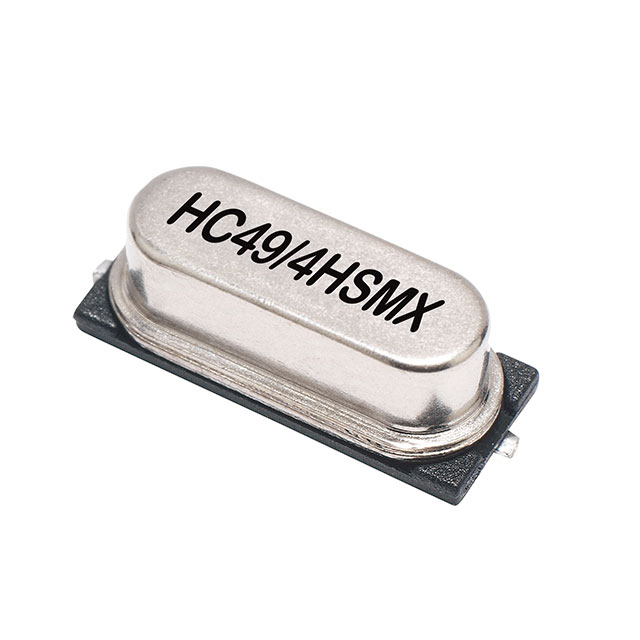

| Part Number | LFXTAL050632 | LFXTAL050510 | LFXTAL050510 | LFXTAL050518 |
| Manufacturer | IQD Frequency Products | IQD Frequency Products | IQD Frequency Products | IQD Frequency Products |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL 32.7680KHZ 6PF SMD | CRYSTAL 8.0000MHZ 18PF SMD | CRYSTAL 8.0000MHZ 18PF SMD | CRYSTAL 12.0000MHZ 12PF SMD |
| Series | IQD Frequency Products | IQD Frequency Products | IQD Frequency Products | IQD Frequency Products |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
