LFXTAL069944
lmages are for reference only.LFXTAL069944
CRYSTAL 12.0000MHZ 15PF SMD
Datasheet4-SMD, No Lead
32,186 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12 MHz ±20ppm Crystal 15pF 120 Ohms 4-SMD, No Lead
LFXTAL069944
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | IQD Frequency Products |
| Series | CFPX-180 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | MHz Crystal |
| Frequency | 12 MHz |
| Frequency Stability | ±50ppm |
| Frequency Tolerance | ±20ppm |
| Load Capacitance | 15pF |
| ESR (Equivalent Series Resistance) | 120 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |

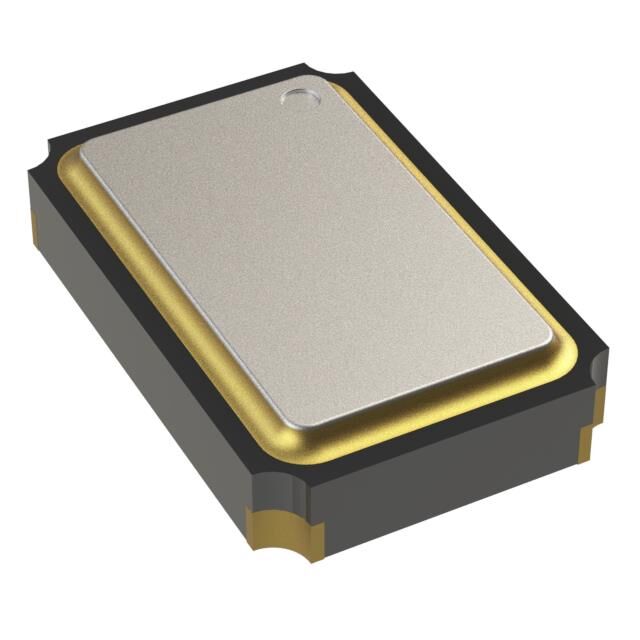

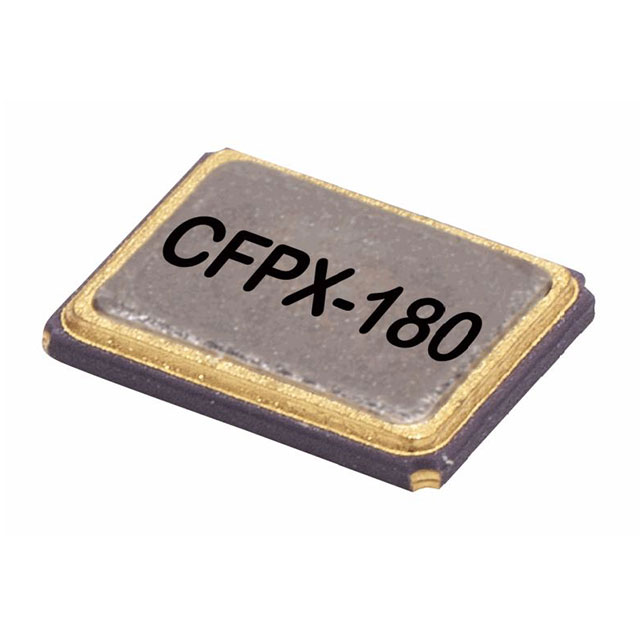

| Part Number | LFXTAL069944 | LFXTAL069277 | LFXTAL069277 | LFXTAL069377 |
| Manufacturer | IQD Frequency Products | IQD Frequency Products | IQD Frequency Products | IQD Frequency Products |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL 12.0000MHZ 15PF SMD | CRYSTAL 8.0000MHZ 20PF SMD | CRYSTAL 8.0000MHZ 20PF SMD | CRYSTAL 32.0000MHZ 18PF SMD |
| Series | IQD Frequency Products | IQD Frequency Products | IQD Frequency Products | IQD Frequency Products |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
